BLOWN FUSES [SKYACTIV-G]

id0103s4888800

Description

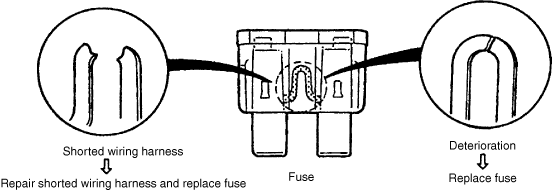

Troubleshooting Hints

am3zzw00034014

Damaged fuse	Related wiring harness
MAIN	•  F3 fuse •  F4 fuse •  F5 fuse •  F7 fuse •  F22 fuse •  F27 fuse •  F28 fuse •  F43 fuse •  F44 fuse •  IG1 relay No.1 •  IG1 relay No.2
ALT/ST	•  Starter
DCDC	•  DC-DC converter (Mazda M Hybrid)
F3	•  Sub relay
F4	•  Electric variable valve timing relay
F5	•  Main relay
F7	•  Fuel pump relay
F8	•  Electric variable valve timing relay •  HO2S •  Ignition coil/ion sensor No.1 •  Ignition coil/ion sensor No.2 •  Ignition coil/ion sensor No.3 •  Ignition coil/ion sensor No.4 •  A/F sensor •  Intake CMP sensor •  Exhaust CMP sensor
F10	•  Electric AT oil pump relay •  Cooling fan relay No.1 •  Cooling fan relay No.2 •  Engine oil level sensor •  DC-DC converter (Mazda M Hybrid)
F12	•  Sub relay •  OCV •  Engine oil solenoid valve •  Purge solenoid valve •  Compressor valve •  Integrated starter generator (ISG)
F16	•  Instrument cluster
F22	•  BCM •  Instrument cluster •  Mazda M Hybrid battery
F27	•  F45 fuse
F28	•  F16 fuse
F43	•  Cooling fan relay No.1 •  Cooling fan relay No.2
F44	•  Starter relay
F45	•  PCM
F47	•  Mazda M Hybrid battery •  DC-DC converter (Mazda M Hybrid)
F49	•  BCM
F53	•  Fuel pump relay •  PCM
