ENGINE FRONT COVER [SKYACTIV-G 2.0]

id0110h2000900

Purpose, Function

• The engine front cover covers the front of the engine to prevent engine oil spillage, noise leakage, and foreign matter penetration.

Construction

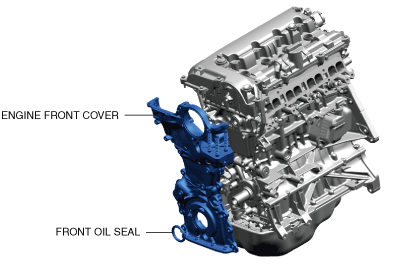

• The engine front cover is installed to the front of the engine.

a30zzn00001243

• The lightweight engine front cover is made of aluminum alloy with excellent noise absorption.

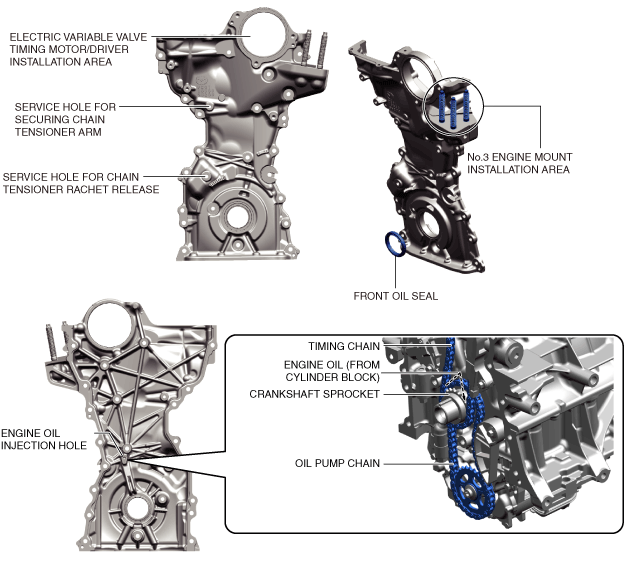

• The engine front cover has the following parts shown in the figure.

a30zzn00001244
