CAMSHAFT [SKYACTIV-G 2.0]

id0110h2001400

Purpose, Function

• The camshaft is rotated by receiving the rotation force of the crankshaft via the timing chain. The valve is opened and closed according to the cam shape at this time.

Construction

• The camshaft is installed to the cylinder head.

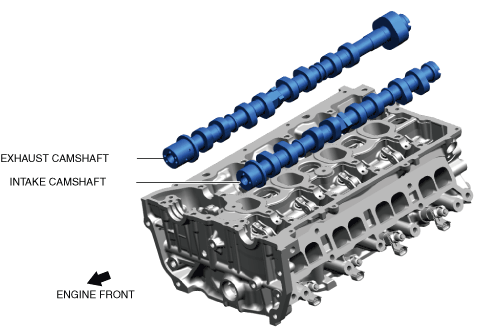

a30zzn00001251

• The intake camshaft is a five-bearing type and the exhaust camshaft is a six-bearing type.

• The camshaft thrust force is suppressed by the No.1 journal.

• The camshaft has the following parts shown in the figure.

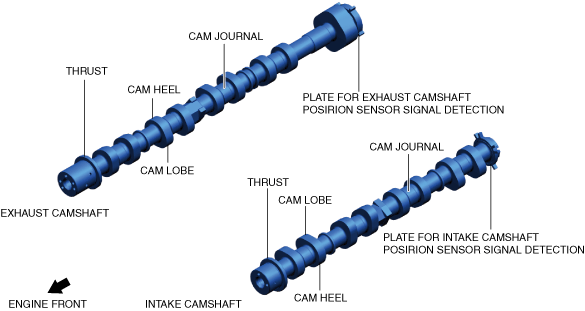

a30zzn00001252

Valve timing

am3zzn00006724

Item

Specification

Valve timing

IN

Open

(°)

BTDC 42—ATDC 32

Close

(°)

ABDC 26—ABDC 100

EX

Open

(°)

BBDC 65—BBDC 10

Close

(°)

ATDC 1—ATDC 56

Item				Specification
Valve timing	IN	Open	(°)	BTDC 42—ATDC 32
	IN	Close	(°)	ABDC 26—ABDC 100
	EX	Open	(°)	BBDC 65—BBDC 10
	EX	Close	(°)	ATDC 1—ATDC 56
