REAR OIL SEAL REPLACEMENT [SKYACTIV-G 2.0]
id0110h2800900
Special Service Tool (SST)
|
49 E033 101
Dust cover installer
|
|
Replacement Part
|
Rear oil seal
Quantity: 1
Location of use: Cylinder block
|
Oil and Chemical Type
|
Engine oil
Type: Recommended oil
|
1. Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6A-EL].)(See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6AX-EL].)
2. Remove the drive plate. (See DRIVE PLATE REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
am3zzw00024910
|
|
1
|
Rear oil seal
(See Rear Oil Seal Removal Note.)
|
Rear Oil Seal Removal Note
1. Cut the rear oil seal lip using a utility knife.
2. Remove the rear oil seal using a flathead screwdriver with the tip protected by a clean cloth to prevent damage to the crankshaft.
am3zzw00024911
|
Rear Oil Seal Installation Note
1. Apply clean engine oil to the inner surface of a new rear oil seal.

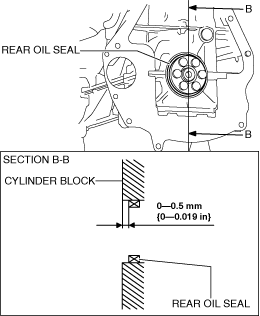

2. Insert the rear oil seal into the cylinder block by hand.

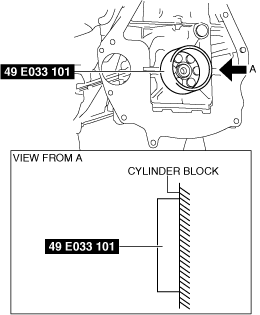

3. Tap the rear oil seal in evenly using the SST and a hammer.
