ENGINE OIL REPLACEMENT [SKYACTIV-G 2.0]

id0111h3800400

Replacement Part

Gasket

Quantity: 1

Location of use: Oil pan drain plug

Oil and Chemical Type

Engine oil

Type: Recommended oil

Warning

• A hot engine can cause severe burns. Be careful when servicing the vehicle.

Caution

• If engine oil is added while engine oil drainage is insufficient, the engine oil amount will exceed the specification and the MAX mark on the dipstick. When draining the engine oil, warm up the engine (engine oil temperature: approx. 60 °C {140 °F} or more) and wait for 5 min or more before draining it.

Note

• The viscosity of the engine oil changes according to the engine oil temperature.

• Because it takes time for the engine oil to return to the oil pan from each engine part and the viscosity of the engine oil is high when the engine is cold, engine oil drainage becomes insufficient.

• The engine oil returns to the oil pan and a sufficient amount of engine oil can be drained by raising the engine oil temperature to approx. 60 °C {140 °F} or more and waiting for 5 min or more.

• Add engine oil until it reaches the MAX mark on the dipstick to handle oil dilution (viscosity reduction) and engine oil consumption (oil amount reduction).

• The engine oil reaches the MAX mark on the dipstick when the engine oil is drained according to the procedure and the specified amount of engine oil is added.

1. Position the vehicle on level ground.

2. Warm up the engine to allow the engine oil temperature to reach 60 °C {140 °F} or more.

3. Stop the engine and wait for 5 min or more.

4. Remove the oil filler cap.

5. Remove the service hole cover (from the front under cover No.2).

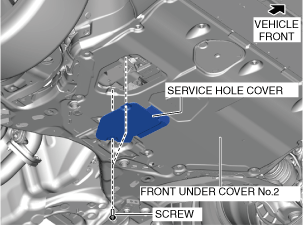

a30zzw00005046

6. Remove the oil pan drain plug.

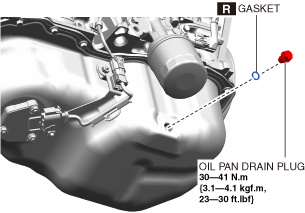

a30zzw00005047

7. Drain the engine oil into a container.

8. Wait until the engine oil starts to drip.

9. Install the oil pan drain plug with a new gasket.

Note

• The amount of residual oil in the engine can vary according to factors such as the replacement method and oil temperature. Verify the oil level after engine oil replacement.

10. Refill with the following type and amount of engine oil.

Engine oil (Australia)

Item		Specifications
Engine oil capacity (approx. quantity)	Oil replacement	4.0 L {4.2 US qt, 3.5 lmp qt}
	Oil and oil filter replacement	4.2 L {4.4 US qt, 3.7 lmp qt}
	Total (dry engine)	4.9 L {5.2 US qt, 4.3 lmp qt}
Grade		API SL or higher
Viscosity (SAE)		0W-20, 0W-30, 5W-20, 5W-30, 10W-30

Engine oil (New Zealand)

Item		Specifications
Engine oil capacity (approx. quantity)	Oil replacement	4.0 L {4.2 US qt, 3.5 lmp qt}
	Oil and oil filter replacement	4.2 L {4.4 US qt, 3.7 lmp qt}
	Total (dry engine)	4.9 L {5.2 US qt, 4.3 lmp qt}
Grade		API SN or higher
Viscosity (SAE)		0W-20, 0W-30, 5W-20, 5W-30, 10W-30

11. Install the oil filler cap.

12. Start the engine and confirm that there is no oil leakage.

• If there is oil leakage, repair or replace the applicable part.

13. Inspect the oil level. (See ENGINE OIL LEVEL INSPECTION [SKYACTIV-G 2.0].)

14. Install the service hole cover.

15. If the engine oil is replaced, perform engine oil data reset. (see ENGINE OIL LEVEL INSPECTION [SKYACTIV-G 2.0].)
