OIL FILTER REPLACEMENT [SKYACTIV-G 2.0]

id0111h3800700

Oil and Chemical Type

Warning

•  Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the engine oil have cooled.

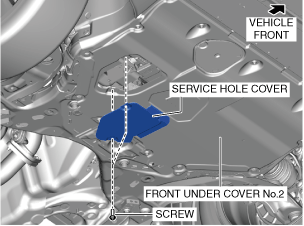

1.  Remove the service hole cover from the front under cover No.2.

a30zzw00005048

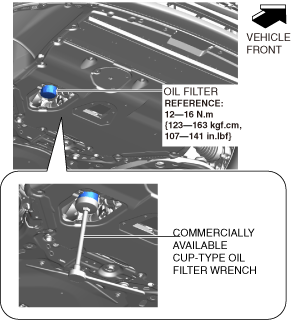

2.  Remove the oil filter using the commercially available, cup-type oil filter wrench (67 mm {2.6 in} diameter, 14 sided).

a30zzw00005049

3.  Use a clean rag to wipe off the mounting surface.

4.  Apply clean engine oil to the O-ring of a new oil filter.

5.  Tighten the oil filter according to the instructions on the package or side of the oil filter.

6.  Start the engine and confirm that there is no oil leakage.

•  If there is oil leakage, repair or replace the applicable part.

7.  Inspect the oil level. (See ENGINE OIL LEVEL INSPECTION [SKYACTIV-G 2.0].)

8.  Install the service hole cover.
