COOLING SYSTEM [SKYACTIV-G 2.0]

id0112h4002800


Outline

•  An engine coolant control valve has been adopted to improve fuel economy during low engine loads.

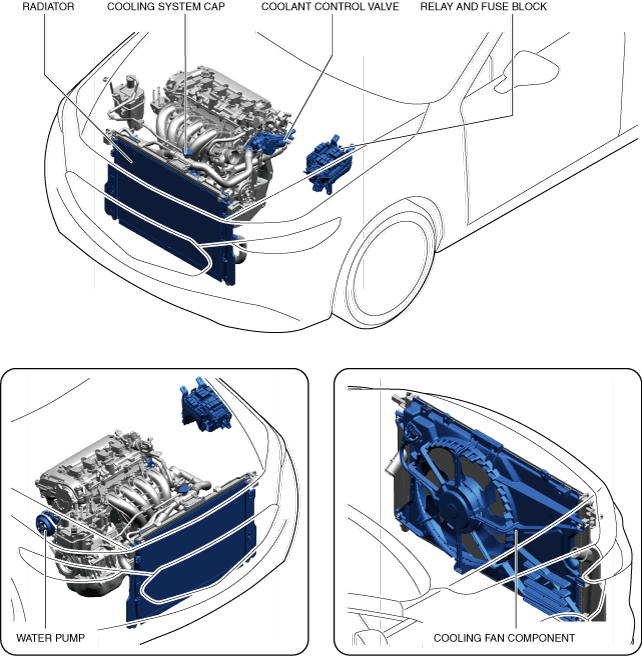

Structural View

a30zzn00001277

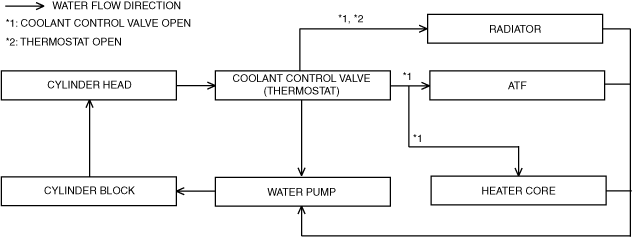

Flow Chart

ac5wzn00004595

Structure

•  Consists of the following parts:

Part name

Reference
Radiator
―
Cooling system cap
―
Water pump
―
Coolant control valve
(See COOLANT CONTROL VALVE [SKYACTIV-G 2.0].)
Cooling fan component
―
Cooling fan relay
―
