INTAKE-AIR SYSTEM [SKYACTIV-G 2.0]

id0113z5003300

Intake-air System

Structural view

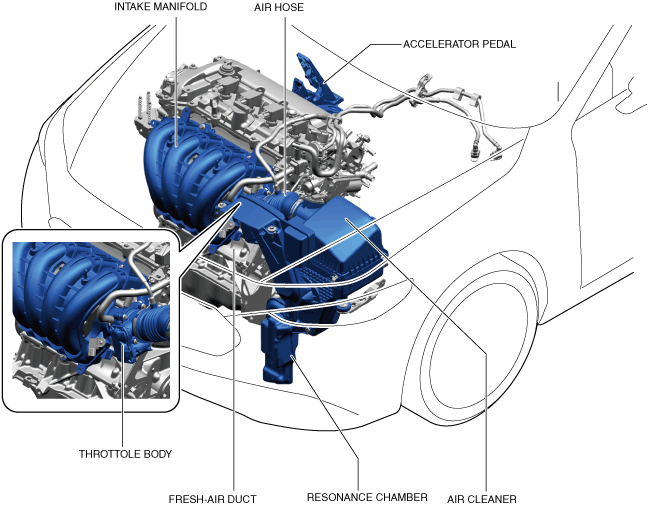

a30zzn00001280

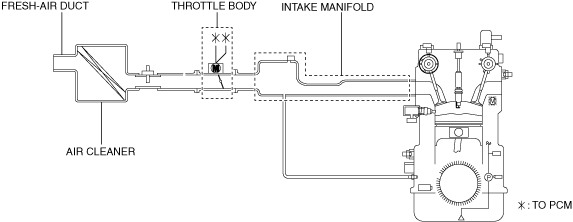

System diagram

a30zzn00001281

Structure

• The intake air system consists of the following parts:

Part name

Reference

Fresh-air duct

(See Fresh-air Duct.)

Resonance chamber

(See Resonance Chamber.)

Air cleaner

―

Throttle body

(See THROTTLE BODY [SKYACTIV-G 2.0].)

Intake manifold

―

Accelerator pedal

(See ACCELERATOR PEDAL, KICKDOWN SWITCH [SKYACTIV-G 2.0].)

Part name	Reference
Fresh-air duct	(See Fresh-air Duct.)
Resonance chamber	(See Resonance Chamber.)
Air cleaner	―
Throttle body	(See THROTTLE BODY [SKYACTIV-G 2.0].)
Intake manifold	―
Accelerator pedal	(See ACCELERATOR PEDAL, KICKDOWN SWITCH [SKYACTIV-G 2.0].)

Fresh-air Duct

Purpose, function

• Brings in fresh air from outside the engine compartment.

• Increases air density by taking fresh air, which is cooler than the engine compartment, to enhance the charging efficiency, ensuring combustion stability.

Construction

• The fresh-air duct is installed to the air cleaner.

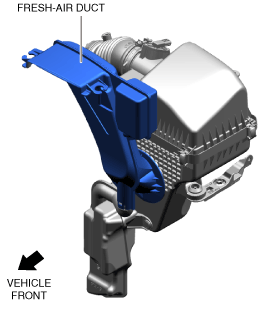

a30zzn00001282

Resonance Chamber

Purpose, function

• Pulsation of intake air is controlled and intake air noise is reduced by adding an intake air passage.

Construction

• The resonance chamber is installed to the fresh-air duct.

a30zzn00001283
