ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 2.0]

id0113z5952200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove in the order indicated in the table.

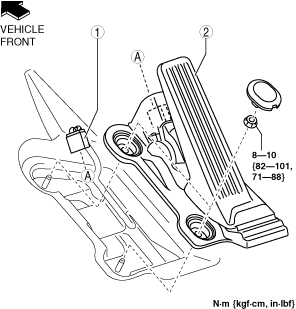

a30zzw00005090

1	APP sensor connector
2	Accelerator pedal

3.  Install in the reverse order of removal.
