FUEL SYSTEM [SKYACTIV-G 2.0]

id0114z5002600


Outline

•  A multiple hole type fuel injector has been adopted which provides higher fuel injection accuracy for improved fuel efficiency and output.
•  Piston movement-compression by the 4-head cam inside the high pressure fuel pump heightens the fuel pressure, achieving improved fuel efficiency and output.
•  A brushless motor has been adopted in the fuel pump unit for improved fuel economy. Using the brushless motor, the fuel pump function is improved and a stabilized fuel supply is achieved.

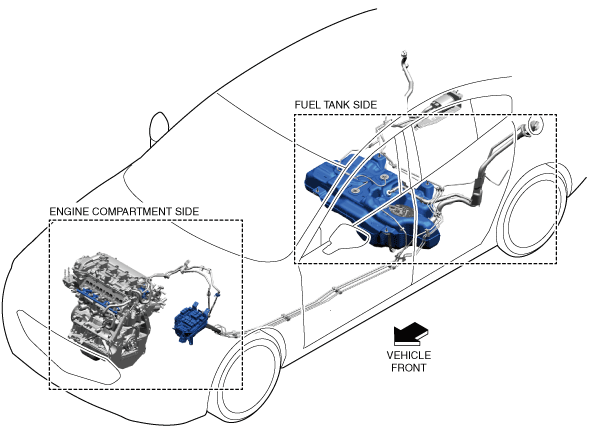

Structural View

a30zzn00001286

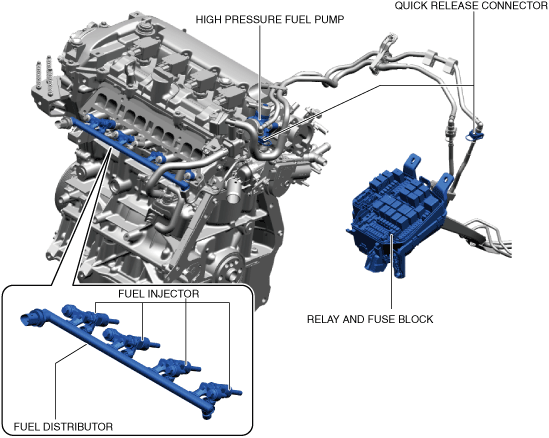

Engine compartment side

a30zzn00001287

Fuel tank side

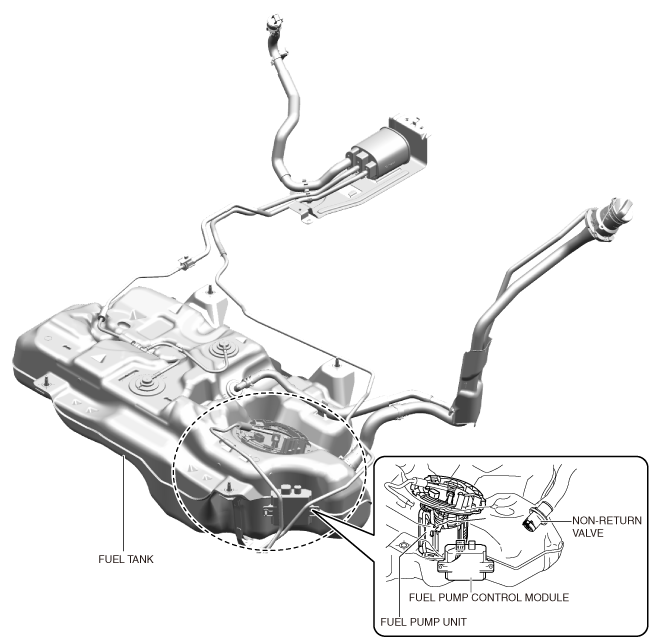

2WD

a30zzn00001288

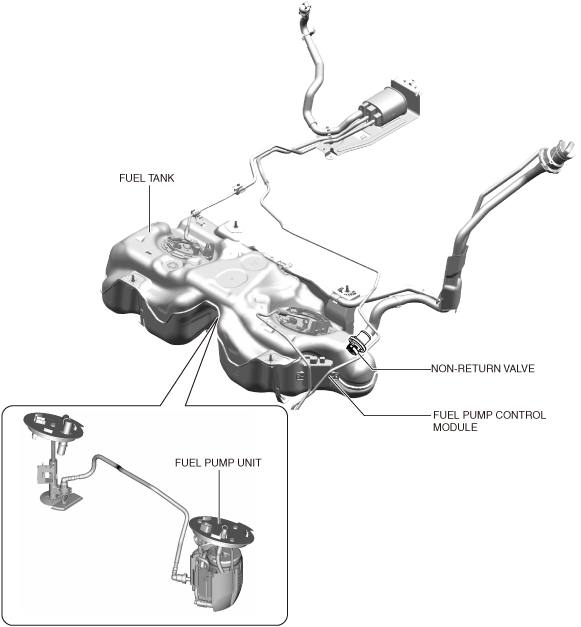

AWD

a30zzn00001289

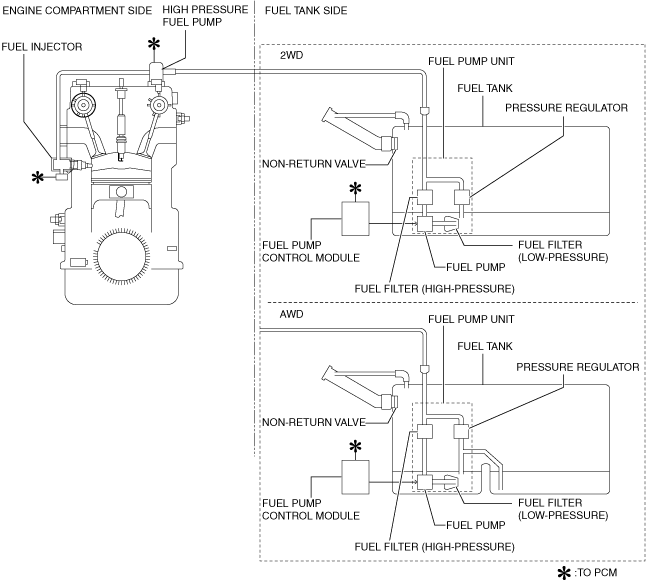

System Diagram

a30zzn00001290

Structure

•  The fuel system consists of the following parts:

Part/System name

Reference
Return-less fuel system
Fuel pump unit
(See RETURNLESS FUEL SYSTEM [SKYACTIV-G 2.0].)
Direct fuel injection system
(See DIRECT FUEL INJECTION SYSTEM [SKYACTIV-G 2.0].)
High pressure fuel pump
(See HIGH PRESSURE FUEL PUMP [SKYACTIV-G 2.0].)
Fuel distributor
(See FUEL DISTRIBUTOR [SKYACTIV-G 2.0].)
Fuel injector
(See FUEL INJECTOR [SKYACTIV-G 2.0].)
Fuel tank
(See FUEL TANK [SKYACTIV-G 2.0].)
Non-return valve
(See FUEL TANK [SKYACTIV-G 2.0].)
Fuel pump relay
―
Sub relay
―
Fuel pump control module
(See FUEL PUMP CONTROL MODULE [SKYACTIV-G 2.0].)
Quick connector (fuel system)
―


Specification

Item

Specification
Fuel injector
Type
High resistance
Fuel supply method
Top-feed
Drive types
Electronic
Pressure regulator control pressure
(kPa {kgf/cm2, psi})
Approx. 500 {5.10, 72.5}
Fuel pump type
Electric
Fuel tank capacity
(L {US gal, Imp gal})
2WD:51.0 {13.5, 11.2}
AWD:48.0 {12.7, 10.6}

Fuel type

Fuel

Research Octane Number
Regular unleaded fuel (Conforming to Fuel Quality Standards Act 2000)
90 or above
