QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.0]

id0114z5952800

Oil and Chemical Type

Warning

•  Fuel vapor is hazardous. It can very easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.

•  Highly pressurized fuel may spray out if the fuel line is cut. Due to the following dangers occurring with a fuel spray, always complete the [Fuel Line Safety Procedure] to prevent the fuel from spraying.

―  Fuel may cause irritation if it comes in contact with skin and eyes.

―  If fuel ignites and causes a fire, it may lead to serious injury or death, and damage to property and facilities.

•  A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before performing work on the fuel system, discharge static electricity by touching the vehicle body.

Caution

•  Disconnecting/connecting the quick release connector without cleaning it may cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting using a cloth or soft brush, and make sure that it is free of foreign material.

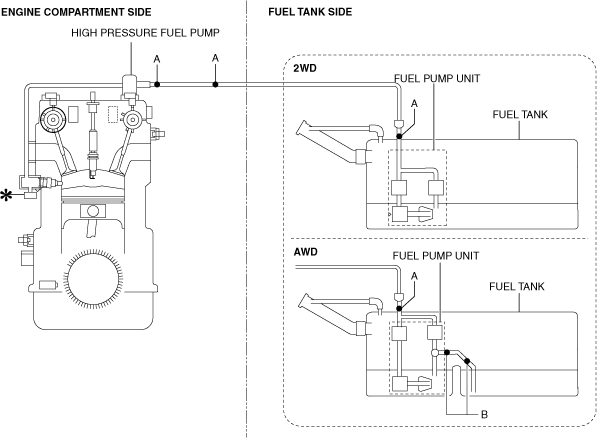

Quick Release Connector Type

Caution

•  Verify the type and location, and install/remove properly.

a30zzw00005101

Type A Removal

1.  Complete the [BEFORE SERVICE PRECAUTION]. (See BEFORE SERVICE PRECAUTION [SKYACTIV-G 2.0].)

2.  Move the retainer upward using a small flathead screwdriver or a similar tool.

am6xuw00001382

3.  Pull out the fuel hose straight from the fuel pipe and disconnect it.

4.  Cover the disconnected quick release connector and fuel pipe with vinyl sheeting or a similar material to prevent it from getting scratched or dirty.

Type B Removal

1.  Complete the [BEFORE SERVICE PRECAUTION]. (See BEFORE SERVICE PRECAUTION [SKYACTIV-G 2.0].)

2.  Set the finger parallel to the quick release connector.

ac30zw00003557

3.  Hold the center of the retainer tabs with the finger and press the retainer.

4.  Pull the connector side and disconnect the quick release connector.

5.  Cover the disconnected quick release connector and fuel pipe with vinyl sheeting or a similar material to prevent it from getting scratched or dirty.

Type A Installation

Note

•  If the quick release connector O-ring is damaged or has slipped, replace the fuel hose.

1.  Inspect the fuel hose and fuel pipe sealing surface for damage and deformation.

•  If there is any malfunction, replace it with a new one.

2.  Install the quick release connector.

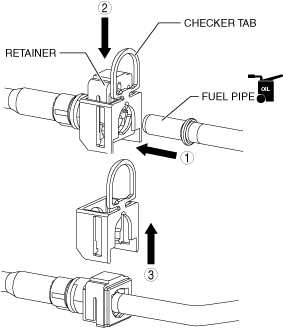

am3uuw00004564

When fuel hose is exchanged

1.  Insert the fuel pipe straight to the end of the quick release connector.

2.  Push down the retainer using a finger.

―  If the retainer cannot be pushed down, push the fuel pipe further to the quick release connector.

3.  Remove the checker tab.

―  Do not use a pliers.

When fuel hose is not exchanged

1.  Insert the fuel pipe straight to the end of the quick release connector.

2.  Push down the retainer using a finger.

―  If the retainer cannot be pushed down, push the fuel pipe further to the quick release connector.

3.  Lightly pull and push the quick release connector a few times by hand, and then verify that it is connected securely.

4.  Complete the [AFTER SERVICE PRECAUTION]. (See AFTER SERVICE PRECAUTION [SKYACTIV-G 2.0].)

Type B Installation

Note

•  If the quick release connector O-ring is damaged or has slipped, replace the piping component.

1.  Inspect the fuel hose and fuel pipe sealing surface for damage and deformation.

•  If there is any malfunction, replace it with a new one.

aaxjjw00027887

2.  Apply a small amount of clean engine oil to the sealing surface of the fuel pipe.

3.  Reconnect the fuel hose straight to the fuel pipe until a click is heard.

4.  Lightly pull and push the quick release connector a few times by hand, and then verify that it is connected securely.

5.  Complete the [AFTER SERVICE PRECAUTION]. (See AFTER SERVICE PRECAUTION [SKYACTIV-G 2.0].)
