EXHAUST SYSTEM [SKYACTIV-G 2.0]

id0115z5125800

Outline

• A high compression ratio has been achieved by adopting 4-2-1 exhaust pipes and reducing residual gas in the cylinders.

• The loop structure of the exhaust pipes for the 4-2-1 system takes up less space.

Structural View

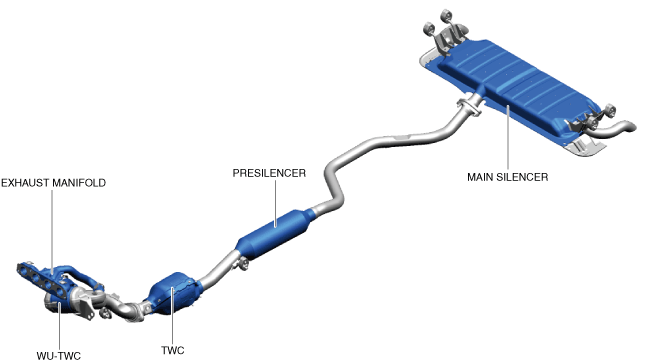

2WD

a30zzn00001312

AWD

a30zzn00001313

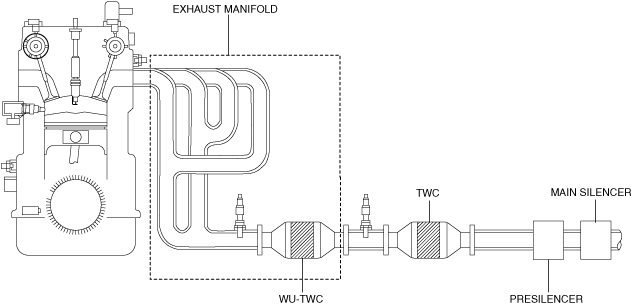

System Diagram

am3zzn00007177

Structure

• The exhaust system consists of the following parts:

Part name

Reference

Main silencer

―

Presilencer

―

TWC

(See EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-G 2.0].)

WU-TWC

Exhaust manifold

(See EXHAUST MANIFOLD [SKYACTIV-G 2.0].)

Part name	Reference
Main silencer	―
Presilencer	―
TWC	(See EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-G 2.0].)
WU-TWC	(See EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-G 2.0].)
Exhaust manifold	(See EXHAUST MANIFOLD [SKYACTIV-G 2.0].)
