POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM [SKYACTIV-G 2.0]

id0116z8148900

Positive Crankcase Ventilation (PCV) System

Purpose, outline

• Prevents release of blow-by gas (unburnt gas) into the atmosphere.

• The intake manifold vacuum introduces blow-by gas to the intake manifold via the PCV valve and the ventilation hose.

System diagram

ac5uun00003889

Structure

• The positive crankcase ventilation system consists of the following parts:

Part name

Reference

PCV valve

(See Positive Crankcase Ventilation (PCV) Valve.)

Ventilation hose

―

Part name	Reference
PCV valve	(See Positive Crankcase Ventilation (PCV) Valve.)
Ventilation hose	―

Positive Crankcase Ventilation (PCV) Valve

Purpose, function

• Prevents release of blow-by gas (unburnt gas) into the atmosphere.

• The PCV valve is open/closed by the intake manifold vacuum.

Construction

• The PCV valve is installed to the oil separator.

a30zzn00001337

• The PCV valve consists of a spring and valve.

a30zzn00001338

Operation

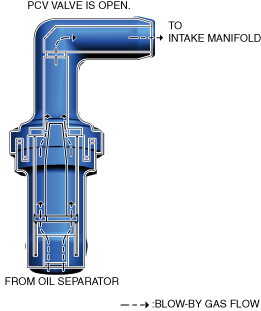

• When the valve is pulled by the intake manifold vacuum, blow-by gas flows to the intake manifold.

a30zzn00001339

• Blow-by gas flow amount is adjusted by the spring according to the intake manifold vacuum.
