CHARCOAL CANISTER INSPECTION [SKYACTIV-G 2.0]

id0116z8800500

Leakage Inspection

Caution

•  Do not apply a pressure 20 kPa {150 mmHg, 5.91 inHg} or more to the charcoal canister for 1 min. or more. Doing so will damage the charcoal canister.

1.  Remove the charcoal canister. (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

2.  Assemble the hose used for inspection to port A.

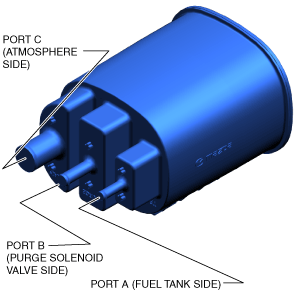

a30zzw00005341

3.  Cover ports B and C with the caps.

4.  Apply pressure (19.6 kPa {147 mmHg, 5.79 inHg}) through the hose, and verify that air does not leak from the charcoal canister.

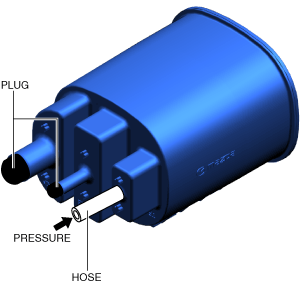

a30zzw00005342

•  If there is airflow, replace the charcoal canister. (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

•  If there is no airflow, perform the following [Airflow Inspection]. (See Airflow Inspection.)

Airflow Inspection

1.  Perform the following procedure to verify the charcoal canister airflow. (Between port A and port C)

(1)  Plug the port B.

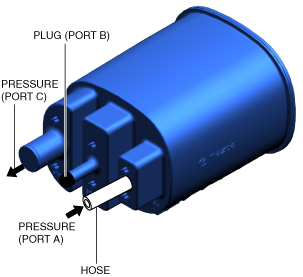

a30zzw00005343

(2)  Apply a pressure of 0.98 kPa {7.4 mmHg, 0.29 inHg} to port A.

(3)  Verify that there is airflow from port C.

•  If there is no airflow, replace the charcoal canister. (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

•  If there is no malfunction, go to the next step.

2.  Perform the following procedure to verify the charcoal canister airflow. (Between port B and port C)

(1)  Plug the port A.

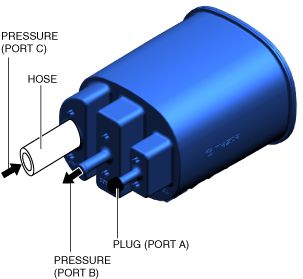

a30zzw00005344

(2)  Apply a pressure of 0.98 kPa {7.4 mmHg, 0.29 inHg} to port C.

(3)  Verify that there is airflow from port B.

•  If there is no airflow, replace the charcoal canister. (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

•  If airflow can be verified, the charcoal canister is normal therefore the inspection is completed.
