PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.0]

id0116z8953400

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

3.  Remove the following parts as a single unit: (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

•  Fresh-air duct

•  Air cleaner cover

•  Air cleaner element

•  Air cleaner case

•  Resonance chamber

•  Air hose

4.  Disconnect the high pressure fuel pump connector.

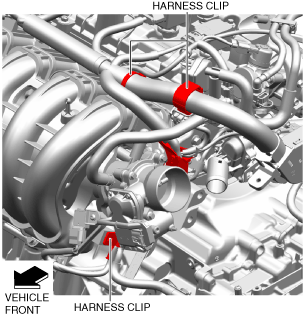

5.  Disconnect the wiring harness clip as shown in the figure.

a30zzw00005114

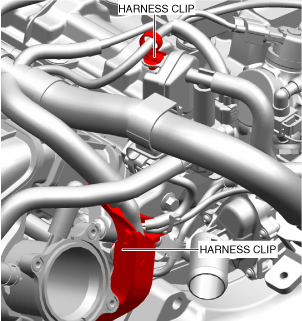

6.  Disconnect the wiring harness clip as shown in the figure.

a30zzw00005115

7.  Disconnect the coolant control valve connector.(See COOLANT CONTROL VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

8.  Remove in the order indicated in the table.

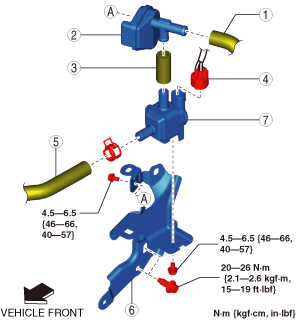

am6xuw00012946

1	Evaporative hose No.1 (See Evaporative Hose No.1 Installation Note.)
2	Catch tank
3	Evaporative hose No.2
4	Purge solenoid valve connector
5	Evaporative hose No.3 (See Evaporative Hose No.3 Installation Note.)
6	Purge solenoid valve bracket
7	Purge solenoid valve

9.  Install in the reverse order of removal.

Evaporative Hose No.3 Installation Note

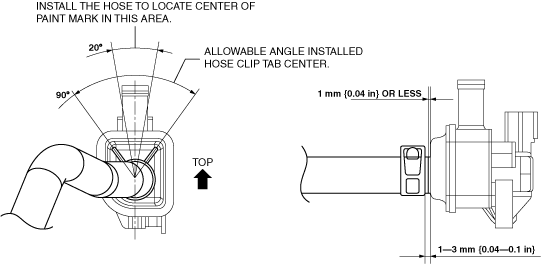

1.  Install the evaporative hose No.3 as shown in the figure.

am6xuw00006513

Evaporative Hose No.1 Installation Note

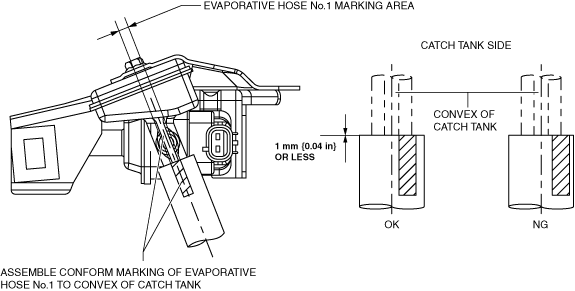

1.  Install the evaporative hose No.1 as shown in the figure.

am6xuw00007941
