IGNITION COIL/ION SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0]

id0118h6954200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

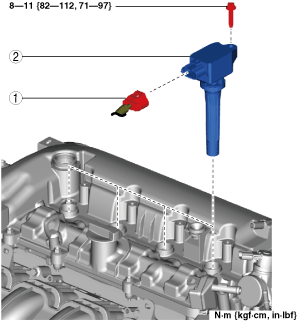

3.  Remove in the order indicated in the table.

am6xuw00011225

1	Connector
2	Ignition coil/ion sensor

4.  Install in the reverse order of removal.
