MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.1 REMOVAL/INSTALLATION [SKYACTIV-G 2.0]

id0140f4955000

Note

•  Because the IAT sensor No.1 is integrated in the MAF sensor, replacing the IAT sensor No.1 includes replacement of the MAF sensor/IAT sensor No.1.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove in the order indicated in the table.

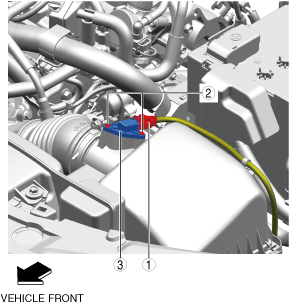

a30zzw00005132

1	MAF sensor/IAT sensor No.1 connector
2	Screw
3	MAF sensor/IAT sensor No.1

3.  Install in the reverse order of removal.
