AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0]

id0140f4955600

Special Service Tool (SST)

49 L018 001   O2 sensor wrench

Warning

•  A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.

Caution

•  Do not allow flammable objects such as the taping for bundling a wiring harness to come into contact with the exhaust manifold and silencer.

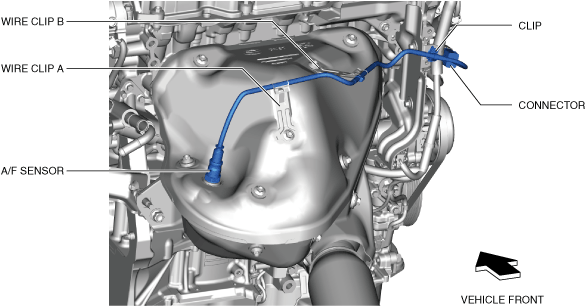

am3zzw00030519

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Disconnect the A/F sensor connector.

3.  Remove the clip from the heat insulator.

ac5uuw00003055

4.  Remove the wiring harness from the wire clip A and B. (See Assembly of Wiring Harness to Wire Clip Note.)

ac5uuw00003056

5.  Remove the A/F sensor using the SST.

am3zzw00030520

6.  Install in the reverse order of removal.

Assembly of Wiring Harness to Wire Clip Note

•  Secure the heat shrinkable tube on the wiring harness to wire clip A.

ac5uuw00003561

•  Secure the wiring harness to wire clip B so that the band on the wiring harness is positioned to the position shown in the figure.

ac5ccw00000072
