ENGINE TECHNICAL DATA [SKYACTIV-G 2.0]

id0150f5800100

Item

Specification

Idle speed (P position or N position)

550—650 rpm

Ignition timing (P position or N position)

Approx. BTDC 12°

CO concentration, HC concentration

Within the regulation

Idle-up speed (P position or N position)

A/C on: 650—800 rpm

Electrical loads on: 640—750 rpm

OCV coil resistance

6.9—7.5 ohms [20°C {68°F}]

Standard cylinder head bolt length

145.2—145.8 mm {5.717—5.740 in}

Maximum cylinder head bolt length

146.5 mm {5.768 in}

Front oil seal press on amount

0—1.0 mm {0—0.039 in} from edge surface of engine front cover

Rear oil seal press on amount

0—0.5 mm {0—0.019 in} from edge surface of cylinder block

Engine oil capacity (approx. quantity)

Oil replacement: 4.0 L {4.2 US qt, 3.5 lmp qt}

Oil and oil filter replacement: 4.2 L {4.4 US qt, 3.7 lmp qt}

Total (dry engine): 4.9 L {5.2 US qt, 4.3 Imp qt}

Oil pressure (reference value) [oil temperature: 80—90 °C {176—194 °F}, coolant temperature: 80—90 °C {176—194 °F}]

Lo: 135—165 kPa {1.38—1.68 kgf/cm², 19.6—23.9 psi} [1,500 rpm]

Hi: 225—275 kPa {2.30—2.80 kgf/cm², 32.7—39.8 psi} [4,500 rpm]

Cooling system cap valve opening pressure

93.2—122.6 kPa {0.951—1.250 kgf/cm², 13.6—17.7 psi}

Cooling fan motor standard current

8.3—10.1 A [12 V]

Throttle body resistance (reference value)

0.3—100 ohms [20°C {68 °F}]

Fuel pressure

475—555 kPa {4.85—5.65 kgf/cm², 68.9—80.4 psi}

Fuel hold pressure

300 kPa {3.06 kgf/cm², 43.5 psi} or more.

Fuel injector resistance (reference value)

1.23—2.03 ohms [Surrounding temperature: 0—80 °C {32—176 °F}]

Battery parasitic draw (When the ignition is off, all doors, the bonnet and the liftgate are closed.)

40—65 mA

Battery slow charge current

55D23L (60 A·h/20HR): 4.5—5.5 A

Battery quick charge current [30 min]

55D23L (60 A·h/20HR): 30 A

Firing order

1—3—4—2 (all cylinders independent firing)

Spark plug type

PE5R-18-110, PE5S-18-110

Spark plug gap

Standard: 1.05—1.40 mm {0.0414—0.0551 in}

New spark plug (reference): 1.05—1.15 mm {0.0414—0.0452 in}

Spark plug resistance

3.0—7.5 kilohms

Starter no-load test voltage

11 V

Starter no-load test current

90 A or less

Item	Specification
Idle speed (P position or N position)	550—650 rpm
Ignition timing (P position or N position)	Approx. BTDC 12°
CO concentration, HC concentration	Within the regulation
Idle-up speed (P position or N position)	A/C on: 650—800 rpm Electrical loads on: 640—750 rpm
OCV coil resistance	6.9—7.5 ohms [20°C {68°F}]
Standard cylinder head bolt length	145.2—145.8 mm {5.717—5.740 in}
Maximum cylinder head bolt length	146.5 mm {5.768 in}
Front oil seal press on amount	0—1.0 mm {0—0.039 in} from edge surface of engine front cover
Rear oil seal press on amount	0—0.5 mm {0—0.019 in} from edge surface of cylinder block
Engine oil capacity (approx. quantity)	Oil replacement: 4.0 L {4.2 US qt, 3.5 lmp qt} Oil and oil filter replacement: 4.2 L {4.4 US qt, 3.7 lmp qt} Total (dry engine): 4.9 L {5.2 US qt, 4.3 Imp qt}
Oil pressure (reference value) [oil temperature: 80—90 °C {176—194 °F}, coolant temperature: 80—90 °C {176—194 °F}]	Lo: 135—165 kPa {1.38—1.68 kgf/cm², 19.6—23.9 psi} [1,500 rpm] Hi: 225—275 kPa {2.30—2.80 kgf/cm², 32.7—39.8 psi} [4,500 rpm]
Cooling system cap valve opening pressure	93.2—122.6 kPa {0.951—1.250 kgf/cm², 13.6—17.7 psi}
Cooling fan motor standard current	8.3—10.1 A [12 V]
Throttle body resistance (reference value)	0.3—100 ohms [20°C {68 °F}]
Fuel pressure	475—555 kPa {4.85—5.65 kgf/cm², 68.9—80.4 psi}
Fuel hold pressure	300 kPa {3.06 kgf/cm², 43.5 psi} or more.
Fuel injector resistance (reference value)	1.23—2.03 ohms [Surrounding temperature: 0—80 °C {32—176 °F}]
Battery parasitic draw (When the ignition is off, all doors, the bonnet and the liftgate are closed.)	40—65 mA
Battery slow charge current	55D23L (60 A·h/20HR): 4.5—5.5 A
Battery quick charge current [30 min]	55D23L (60 A·h/20HR): 30 A
Firing order	1—3—4—2 (all cylinders independent firing)

Spark plug type	PE5R-18-110, PE5S-18-110
Spark plug gap	Standard: 1.05—1.40 mm {0.0414—0.0551 in} New spark plug (reference): 1.05—1.15 mm {0.0414—0.0452 in}
Spark plug resistance	3.0—7.5 kilohms
Starter no-load test voltage	11 V
Starter no-load test current	90 A or less

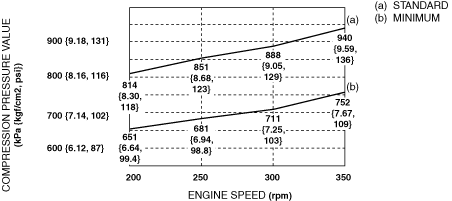

Compression pressure

am3zzw00028952

Standard: Refer to the graph.

Minimum: Refer to the graph.

Maximum difference between cylinders: 116 kPa {1.18 kgf/cm², 16.8 psi}[250 rpm]

Engine oil (Australia)

Item	Specifications
Grade	API SL or higher
Viscosity (SAE)	0W-20, 0W-30, 5W-20, 5W-30, 10W-30

Engine oil (New Zealand)

Item	Specifications
Grade	API SN or higher
Viscosity (SAE)	0W-20, 0W-30, 5W-20, 5W-30, 10W-30

Engine coolant capacity (approx. quantity)

Capacity
6.0 L {6.3 US qt, 5.3 Imp qt}

Integrated Starter Generator (ISG) generated current (reference value) [Ambient temperature: 20 °C {68 °F}, Engine hot]

Engine speed (rpm)	Terminal 1A voltage (V)	Integrated Starter Generator (ISG) output current (A)
1,000	13	83
1,000	15	83
2,000	13	98
2,000	15	105
