REAR SHOCK ABSORBER REMOVAL/INSTALLATION

id021400700200

Caution

•  If the rear shock absorbers are removed/installed at the same time, the torsion beam axle will move downward until it contacts the exhaust system (catalytic converter (TWC) and cause damage). When removing/installing the rear shock absorbers, do one side at a time being careful not to let the torsion beam axle contact the exhaust system.

1.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

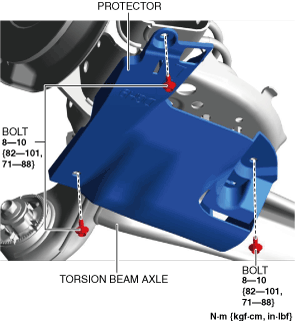

2.  Remove the protector.

a30zzw00005280

3.  Support the torsion beam axle using a jack.

a30zzw00005281

Warning

•  If the torsion beam axle falls off while it is removed/installed, it may cause serious injury or death, or vehicle damage. Always use a jack when removing/installing the torsion beam axle and verify that it is securely supported.

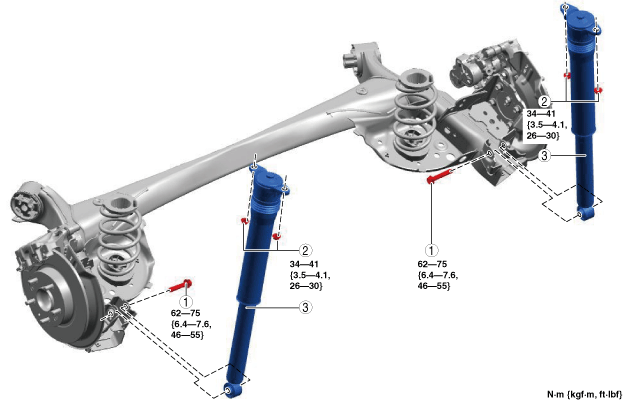

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

a30zzw00005282

1	Bolt (rear shock absorber lower side)
2	Nut (rear shock absorber upper side)
3	Rear shock absorber
