REAR DRIVE SHAFT


id031300100700


Purpose, Function

•  A bell joint has been adopted for the wheel-side constant velocity joint, reducing vibration and noise.
•  A double offset joint has been adopted for the differential side constant velocity joint to reduce booming noise during high-speed driving and vibration when idling.
•  An extremely durable plastic has been adopted for the wheel side boot.

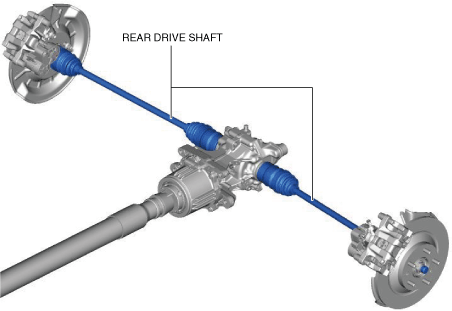

Structural View

ac30zn00000033
