FRONT DRIVE SHAFT


id031300700600


Purpose, Function

•  A bell joint has been adopted for the wheel-side constant velocity joint, reducing vibration and noise.
•  A tripod joint has been adopted for the differential side constant velocity joint to reduce booming noise during high-speed driving and vibration when idling.
•  By integrating the drive shaft on the right side with the joint shaft, vibration and noise during driving, which occurred from the previous spline connection construction, has been reduced.

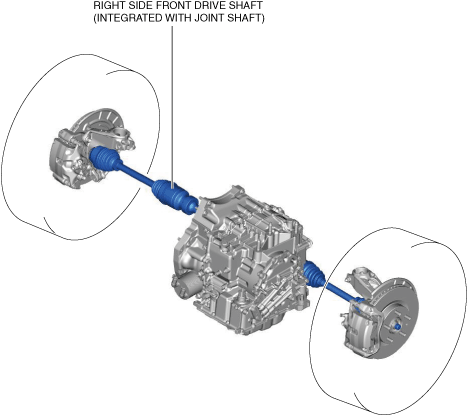

Structural View

ac30zn00000032
