BRAKE PEDAL REMOVAL/INSTALLATION

id041100700500

Replacement Part

Caution

•  The clearance between the brake switch and the brake pedal is automatically adjusted to the correct amount when the brake switch is inserted into the installation hole on the brake pedal and rotated to fix in place. If the brake switch is not properly installed, the clearance may be incorrect, causing a brake light malfunction. Therefore, always verify that the brake pedal is properly installed and fully released before installing the brake switch to the pedal.

•  Once the brake switch clearance has automatically been adjusted, it cannot be adjusted again. Therefore, replace the switch with a new one when replacing the electronically controlled brake unit or the pedal, or performing any procedure that changes the pedal stroke.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the electronically controlled brake unit. (See ELECTRONICALLY CONTROLLED BRAKE UNIT REMOVAL/INSTALLATION.)

3.  Remove in the order shown in the figure.

4.  Install in the reverse order of removal.

5.  If the brake pedal is replaced, perform the following procedure.

(1)  Connect the M-MDS.

(2)  Select the following item from the screen of the M-MDS.

(3)  Press [Start] for the vehicle identification.

(4)  Press the [Toolbox] tab.

(5)  Press the [Work Support] icon.

(6)  Press the [BRAKES] icon.

(7)  Press [Run] for Calibrating Pressure Sensor for DSC.

(8)  Perform the procedure according to the directions on the screen.

(9)  Drive the vehicle.

(10)  After 5 min or more of driving, verify that the DSC system is normal.

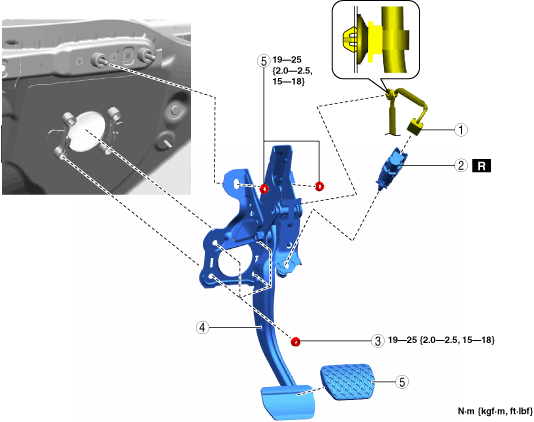

a30zzw00005902

1	Brake switch connector and wiring harness
2	Brake switch (See Brake Switch Installation Note.)
3	Nut (See Brake Pedal Installation Note.)
4	Brake pedal (See Brake Pedal Removal Note.) (See Brake Pedal Installation Note.)
5	Pedal pad

Brake Pedal Removal Note

1.  Remove the nuts.

ac30zw00000113

2.  Remove the bracket.

3.  Move the brake pedal in the direction of the arrow shown in the figure, and remove it while avoiding the hooks.

am3zzw00034275

Brake Pedal Installation Note

1.  Temporarily tighten nuts A.

a30zzw00005903

2.  Temporarily tighten nuts B.

3.  Tighten nuts B to the specified torque.

4.  Tighten nuts A to the specified torque.

5.  Install the bracket.

6.  Tighten the nuts in the order shown in the figure.

a30zzw00005904

Brake Switch Installation Note

1.  Inspect the brake pedal. (See BRAKE PEDAL INSPECTION.)

2.  With the brake pedal fully released, insert the brake switch into the installation hole on the brake pedal.

Caution

•  If the brake pedal arm is moved when securing the brake switch, the clearance between the brake pedal and brake switch may not be adjusted to the correct clearance. Be careful not to move the brake pedal arm when securing the brake switch.

3.  Secure the brake switch by turning it counterclockwise 45°.

am3zzw00025057
