FRONT BRAKE DISC PAD REMOVAL/INSTALLATION

id041100701000

Replacement Part

Oil and Chemical Type

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

5.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

6.  After installation, depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

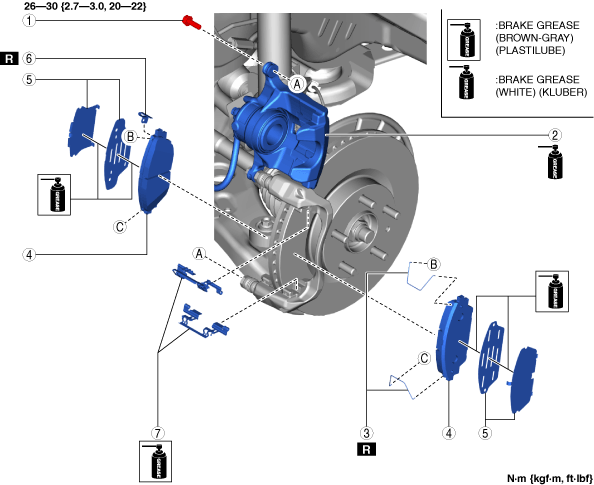

a30zzw00005146

1	Bolt
2	Front brake caliper (See Front Brake Caliper Installation Note.)
3	Spring
4	Disc pad
5	Shim
6	Wear indicator
7	Guide plate (See Guide Plate Installation Note.)

Guide Plate Installation Note

Caution

•  When assembling the guide plates to the front brake mounting support, securely assemble them on the leading side and trailing side to each position shown in the figure. If the guide plates are assembled to the incorrect positions, it could become a source of noise.

1.  Install the guide plate as shown in the figure.

ac30zw00000100

2.  Apply grease to the locations shown in the figure.

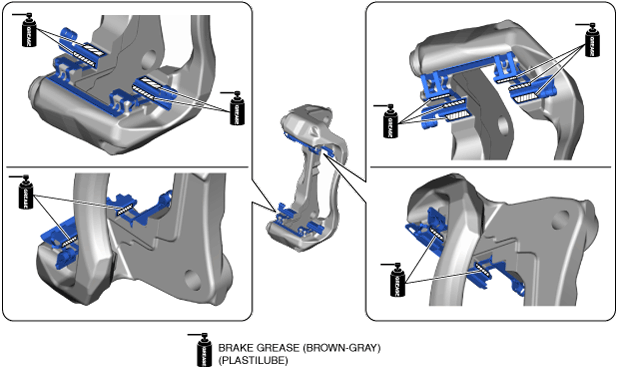

ac30zw00000101

Front Brake Caliper Installation Note

1.  Clean the exposed area of the piston.

2.  Push the piston in using the commercially available disc brake expand tool.

a30zzw00005147

3.  Apply grease to the locations shown in the figure.

ac30zw00000103

4.  Install the disc pads to the front brake mounting support.

5.  Return the front brake caliper to the original position and install the bolt.
