ELECTRONICALLY CONTROLLED BRAKE SYSTEM LOCATION INDEX

id041900700100

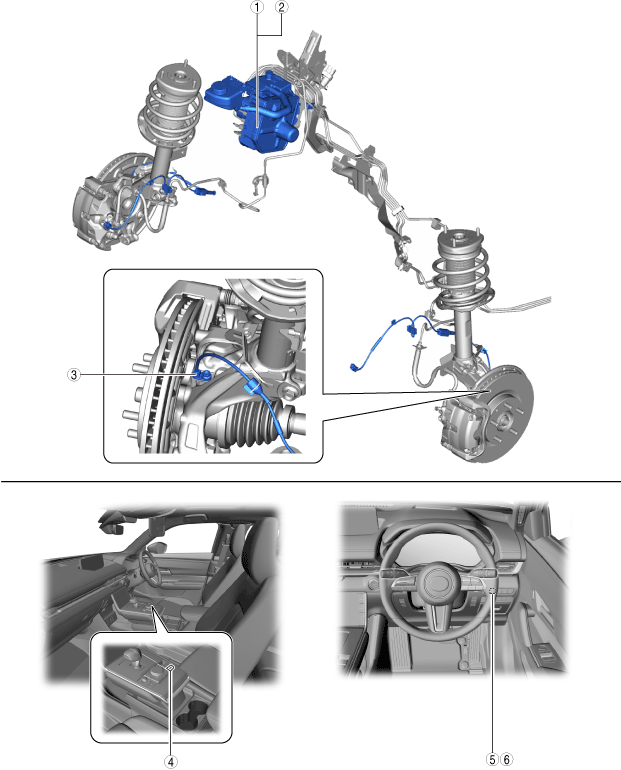

Vehicle Front Side

a30jjw00001160

1	Electronically controlled brake unit (See ELECTRONICALLY CONTROLLED BRAKE UNIT REMOVAL/INSTALLATION.) (See ELECTRONICALLY CONTROLLED BRAKE UNIT INSPECTION.) (See ELECTRONICALLY CONTROLLED BRAKE UNIT RELATED PARTS SENSOR INITIALIZATION PROCEDURE.)
2	Brake fluid pressure sensor (built-into electronically controlled brake unit) (See BRAKE FLUID PRESSURE SENSOR INSPECTION.) (See ELECTRONICALLY CONTROLLED BRAKE UNIT RELATED PARTS SENSOR INITIALIZATION PROCEDURE.)
3	Front ABS wheel-speed sensor (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)
4	AUTO HOLD switch (See AUTOHOLD SWITCH REMOVAL/INSTALLATION.) (See AUTOHOLD SWITCH INSPECTION.)
5	TCS OFF switch (2WD) (See TCS OFF SWITCH REMOVAL/INSTALLATION [2WD].) (See TCS OFF SWITCH INSPECTION [2WD].)
6	Off-Road Traction Assist switch (AWD) (See OFF-ROAD TRACTION ASSIST SWITCH REMOVAL/INSTALLATION [AWD].) (See OFF-ROAD TRACTION ASSIST SWITCH INSPECTION [AWD].)

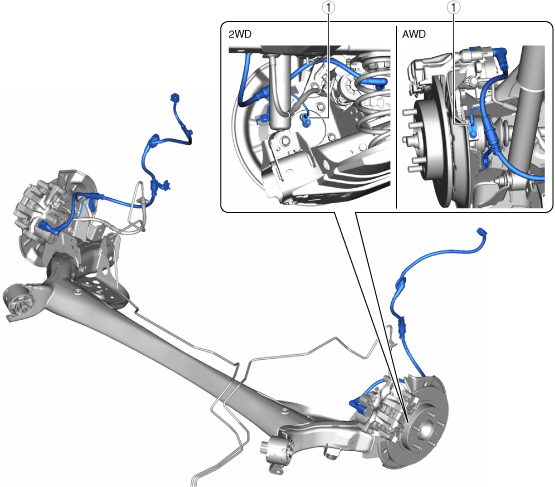

Vehicle Rear Side

a30jjw00001161

1	Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION [2WD].) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION [AWD].)
