INDICATOR INSPECTION


id051800298300

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the indicator. (See INDICATOR REMOVAL/INSTALLATION.)

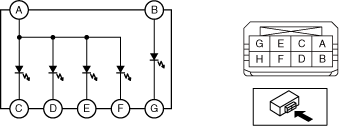

3.  Apply battery voltage and connect the ground to each terminal of the indicator as indicated in the table below and verify that each LED turns on normally.

a30zzw00002255

Terminal B+

Ground terminal

Status

PRND letter illumination

Shift indicator

P position

R position

N position

D position

B
G
Turns ON
Turns OFF
Turns OFF
Turns OFF
Turns OFF
A
C
Turns OFF
Turns ON
Turns OFF
Turns OFF
Turns OFF
A
D
Turns OFF
Turns OFF
Turns ON
Turns OFF
Turns OFF
A
E
Turns OFF
Turns OFF
Turns OFF
Turns ON
Turns OFF
A
F
Turns OFF
Turns OFF
Turns OFF
Turns OFF
Turns ON

•  If the LED does not turn on, replace the indicator.
