•  The indicator turns on to notify the driver of the actual shift position. At this time, the indicator for the actual shift position turns on regardless of the selector lever position.

•  The indicator and the indication on the multi-information display urge the driver to shift to the proper shift position. (See WARNING/INDICATION/ALARM.)

•  The indicator is located on the upper panel.

a30zzn00001424

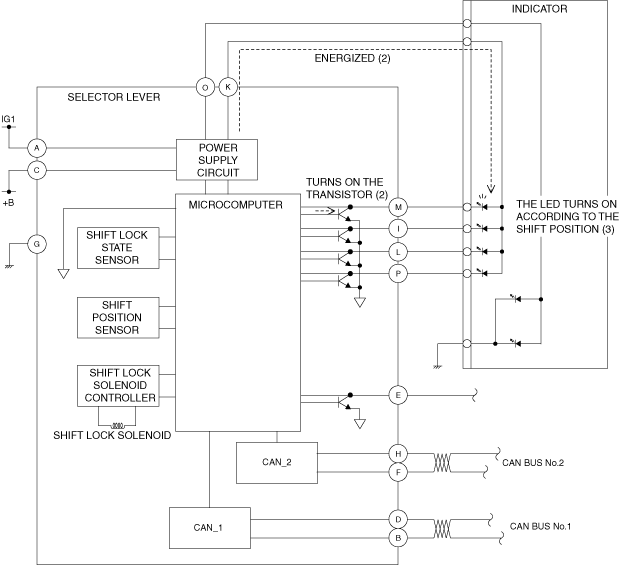

•  When the selector lever receives the illumination request signal corresponding to the actual shift position via CAN communication, the microcomputer in the selector lever turns the transistor on (1).

•  Current (2) flows to the indicator circuit and the LED corresponding to the shift position turns on (3).
