BLOWER SYSTEM

id071100700200

Outline

• The blower system takes in air from inside or outside of the vehicle, and sends it to the A/C unit passing through the air filter.

Function

• The blower system sends air to the A/C unit by the blower motor.

• The air intake of the blower system is either FRESH or RECIRCULATE depending on the position of the air intake doors.

Structural View

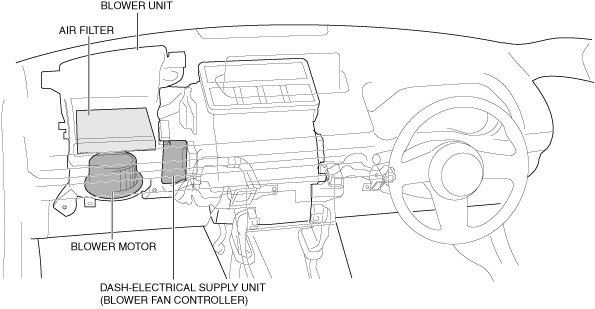

a30zzn00001634

Operation

1. When IG1 relay No.2 turns ON, the blower relay turns ON (1).

2. When the blower relay turns on, the blower fan controller goes on operation stand-by (2).

3. When the blower relay turns on, the climate control unit sends (4) an airflow volume setting signal to the blower fan controller based on the airflow volume setting (3).

4. The blower fan controller drive circuit determines (5) the duty ratio to rotate the blower motor, based on the airflow volume setting signal, and turns the power MOS FET (6) on or off.

5. When the power MOS FET is turned on, the blower motor circuit is established (7) and the blower motor rotates (8).

6. The power MOS FET repeatedly turns on or off at high speed to suppress the blower motor and control the rotation speed.

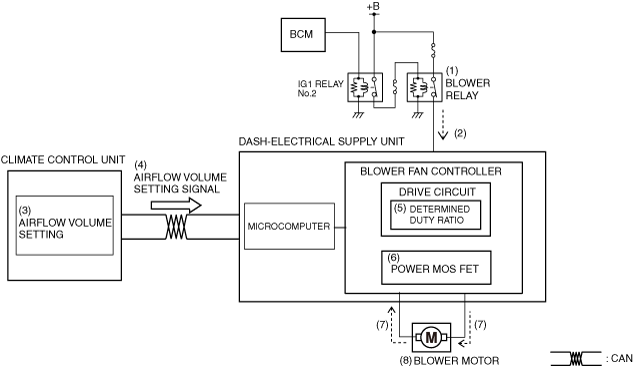

a30zzn00001635

7. When the blower motor rotates, air is sent to the A/C unit. In addition, the air intake is either FRESH or RECIRCULATE depending on the position of the air intake doors.

a30zzn00001636
