CLIMATE CONTROL UNIT

id074000700500


Purpose

•  The climate control unit displays the operation and setting status of the air conditioner system settings.

Function

•  The climate control unit outputs the input signals from each sensor and the operation signal from the operation panel to the dash-electrical supply unit.
•  The climate control unit displays the following on the display panel.
―  Airflow temperature setting (driver/passenger-side)
―  Airflow mode setting
―  Air intake setting
―  Auto control
―  Airflow volume setting
―  Heated steering wheel setting (With heated steering wheel system)
―  Seat warmer setting (With seat warmer)

SYNC mode (driver/passenger-side temperature setting interlocking control)

•  While in SYNC mode, the passenger-side temperature setting is linked to the driver-side temperature setting.
•  When the climate control unit SYNC icon is pressed or the temperature control (passenger-side) is operated while in SYNC mode, the mode switches to DUAL mode.


DUAL mode (driver/passenger-side temperature setting independent control)

•  While in DUAL mode, the driver and passenger-side temperature settings can be performed independently by operating the temperature setting (LH)/(RH). In addition, the temperature setting display on the display/operation panel is displayed independently according to each setting temperature for the driver and passenger-side.
•  When the climate control unit SYNC icon is pressed while in DUAL mode, the mode switches to SYNC mode.


Construction

•  A logic-type climate control unit has been adopted.
•  The climate control unit consists of a control panel, display panel, and a control unit.

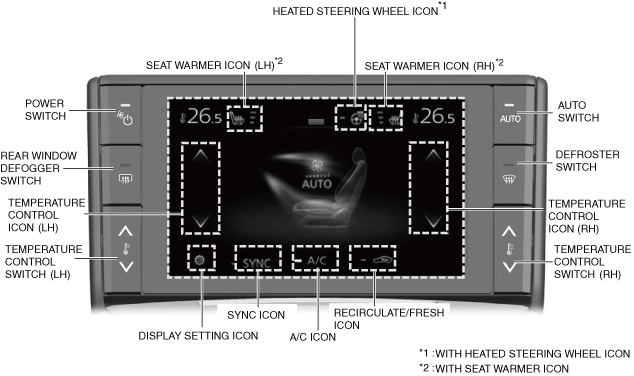

•  The switches and icons shown in the figure are positioned on the climate control unit.
a30zzn00001681
•  The display/operation panel displays the following.
―  Air conditioner system setting
―  Seat warmer or heated steering wheel setting
―  Display screen brightness/operation sound volume setting

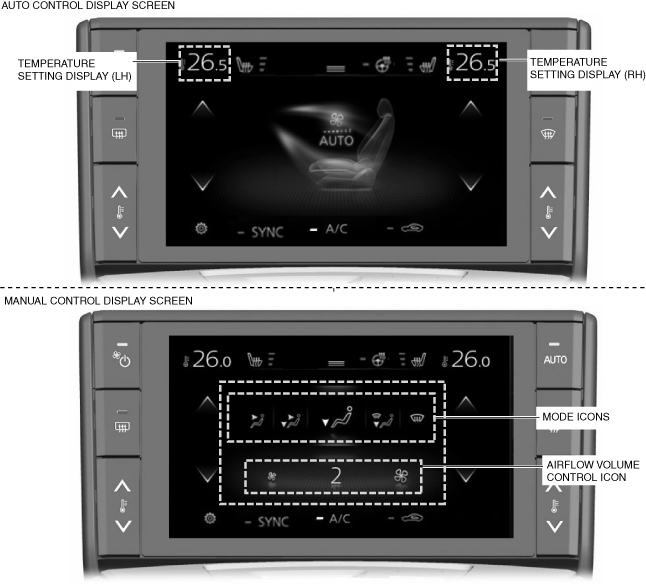

Air conditioner system setting screen

a30zzn00001724

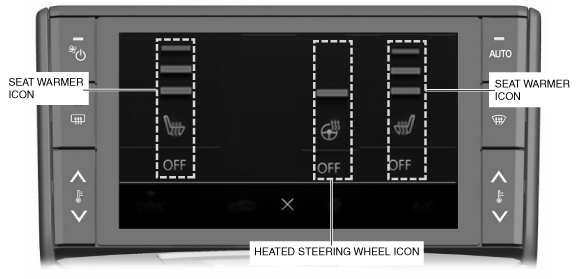

Seat warmer or heated steering wheel setting screen

•  Refer to [SEAT WARMER SYSTEM] or [HEATED STEERING WHEEL SYSTEM] for details. (See SEAT WARMER SYSTEM.) (See HEATED STEERING WHEEL SYSTEM.)
a30zzn00001680

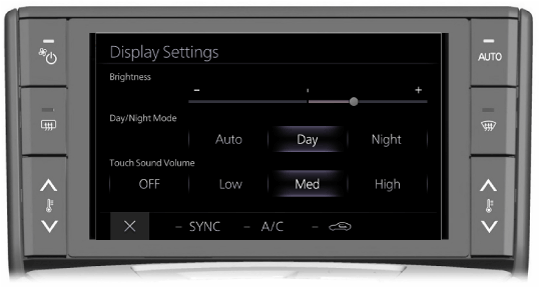

Display screen brightness/operation sound volume setting screen

•  The brightness of the climate control unit display screen can be changed.
•  The volume of the climate control unit operation sound can be changed.
a30zzn00001754


Operation

•  For the climate control unit operation, refer to the [FULL-AUTO AIR CONDITIONING SYSTEM]. (See FULL-AUTO AIR CONDITIONER SYSTEM.)
