DASH-ELECTRICAL SUPPLY UNIT

id074000700600


Purpose, function

•  The dash-electrical supply unit controls the following systems based on signals from each sensor/switch.
―  Air conditioner system
―  Heated steering wheel system (With heated steering wheel)
―  Seat warmer system (With seat warmer)

Construction

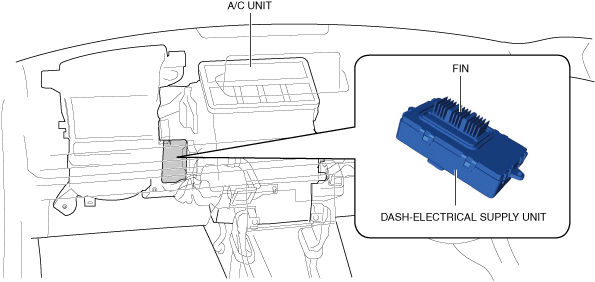

•  The blower fan controller is built into the dash-electrical supply unit.
a30zzn00001677

Operation

•  For the dash-electrical supply unit operation, refer to the following systems.
―  FULL-AUTO AIR CONDITIONER SYSTEM (See FULL-AUTO AIR CONDITIONER SYSTEM.)
―  HEATED STEERING WHEEL SYSTEM (See HEATED STEERING WHEEL SYSTEM.)
―  SEAT WARMER SYSTEM (See SEAT WARMER SYSTEM.)
