TEMPERATURE SENSOR

id074000700700

Ambient Temperature Sensor

Purpose/function

•  The ambient temperature sensor converts the detected air temperature to an electric signal.

Structure/construction

•  A thermistor-type ambient temperature sensor has been adopted.

am3zzn00008106

•  The ambient temperature sensor is located on the shroud panel on the back side of the front bumper.

Operation

•  The thermistor changes the resistance according to the surrounding temperature.

•  The resistance decreases if the temperature increases, and increases if the temperature decreases.

am3zzn00008107

Evaporator Temperature Sensor

Purpose/function

•  The evaporator temperature sensor converts the airflow temperature passing through the detected evaporator to an electrical signal.

Structure/construction

•  A thermistor-type evaporator temperature sensor has been adopted.

am3zzn00008108

•  A fin-thermo-type sensor has been adopted to the sensor area of the evaporator temperature sensor which inserts between the evaporator fins.

•  The evaporator temperature sensor is located on the A/C unit.

Operation

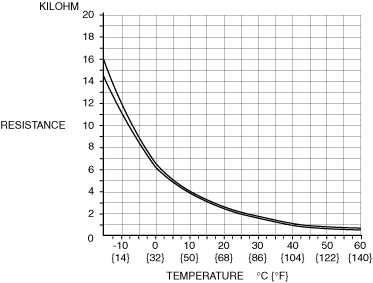

•  The thermistor changes the resistance according to the surrounding temperature.

•  The resistance decreases if the temperature increases, and increases if the temperature decreases.

am3zzn00008109

Passenger Compartment Temperature Sensor

Purpose/function

•  The passenger compartment temperature sensor converts the detected air temperature to an electric signal.

Structure/construction

•  A thermistor-type passenger compartment temperature sensor has been adopted.

am3zzn00008110

•  The passenger compartment temperature sensor is located on the lower panel (driver’s side).

Operation

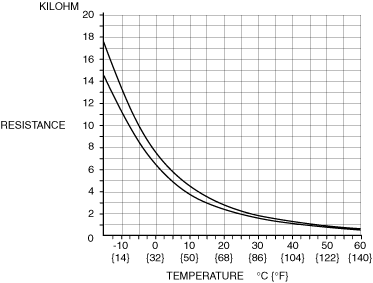

•  The thermistor changes the resistance according to the surrounding temperature.

•  The resistance decreases if the temperature increases, and increases if the temperature decreases.

am3zzn00008111
