ACTUATOR

id074000701200

Air mix actuator

Purpose

•  The air mix actuator opens/closes the air mix door in the A/C unit to adjust the temperature of the air blown from the air vent.

Function

Door open/close function

•  The door open/close function opens/closes the air mix door in the HOT or COLD direction by driving the air mix actuator motor.

Door position detection function

•  The door position detection function fluctuates the potentiometer voltage which is linked to the air mix actuator motor drive.

Structure/construction

•  A potentiometer-type air mix actuator has been adopted.

•  The air mix actuator is located in the A/C unit.

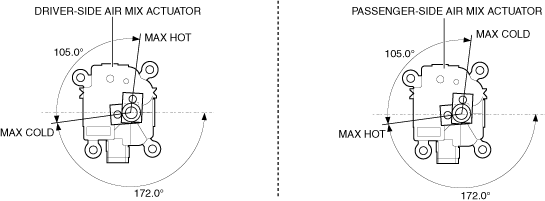

•  The operation range of the air mix actuator is as shown in the figure.

a30zzn00001640

Operation

•  For the air mix actuator operation, refer to the [FULL-AUTO AIR CONDITIONING SYSTEM]. (See FULL-AUTO AIR CONDITIONER SYSTEM.)

Airflow mode actuator

Purpose

•  The airflow mode actuator opens/closes the mode door in the A/C unit to switch the air vent.

Function

Door open/close function

•  The door open/close function opens/closes the mode door to the vents, bi-level, heat, defroster/heat, or defroster positions by driving the airflow mode actuator motor.

Door position detection function

•  The door position detection function fluctuates the potentiometer voltage which is linked to the airflow mode actuator motor drive.

Structure/construction

•  A potentiometer-type airflow mode actuator has been adopted.

•  The airflow mode actuator is located in the A/C unit.

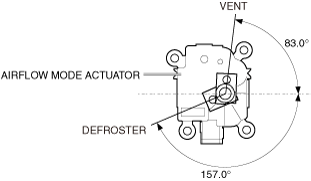

•  The operation range of the airflow mode actuator is as shown in the figure.

a30zzn00001641

Operation

•  For the airflow mode actuator operation, refer to the [FULL-AUTO AIR CONDITIONING SYSTEM]. (See FULL-AUTO AIR CONDITIONER SYSTEM.)

Air intake actuator

Purpose

•  The air intake actuator opens/closes the air intake door in the blower unit to switch the air inlet.

Function

Door open/close function

•  The door open/close function opens/closes the air intake door to the FRESH or REC position by driving the air intake actuator motor.

Door position detection function

•  The door position detection function fluctuates the potentiometer voltage which is linked to the air intake actuator motor drive.

Structure/construction

•  A potentiometer-type air intake actuator has been adopted.

•  The air intake actuator is located in the blower unit.

•  The operation range of the air intake actuator is as shown in the figure.

a30zzn00001642

Operation

•  For the air intake actuator operation, refer to the [FULL-AUTO AIR CONDITIONING SYSTEM]. (See FULL-AUTO AIR CONDITIONER SYSTEM.)
