AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION

id074000703700

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

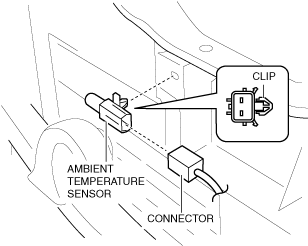

a30zzw00006299

4.  Detach the clip and remove the ambient temperature sensor.

5.  Install in the reverse order of removal.

6.  Perform the 360°view monitor system aiming. (With 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

7.  Perform the front radar sensor/front side radar sensor aiming. (With front side radar sensor) (See FRONT RADAR SENSOR/FRONT SIDE RADAR SENSOR AIMING.)

8.  Perform the front radar sensor aiming. (Without front side radar sensor) (See FRONT RADAR SENSOR AIMING.)
