AIRFLOW MODE ACTUATOR REMOVAL

id074000705800

Warning

•  Service the area around the heater core pipe when the engine is cold. If the heater core pipe is touched when the engine is hot, it may cause severe burns.

1.  Set the airflow mode to HEAT.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

a30zzw00006396

5.  Detach the clip.

6.  Remove the screws.

7.  Remove the airflow mode actuator component.

8.  Remove the airflow mode main link.

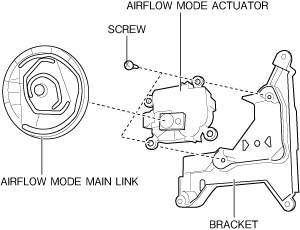

a30zzw00006397

9.  Remove the screws.

10.  Remove the airflow mode actuator .
