AIRFLOW MODE ACTUATOR INSTALLATION

id074000705900

1. Install the airflow mode actuator to the bracket.

a30zzw00006398

2. Install the screws.

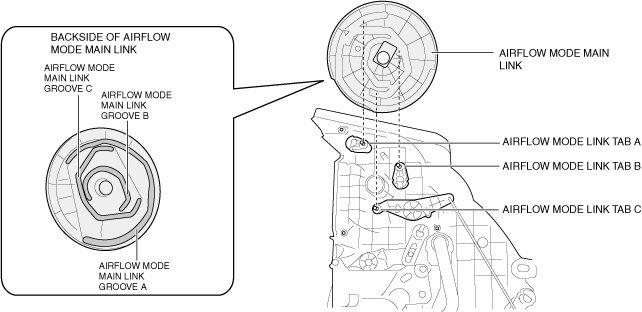

3. Align the following airflow mode link tabs with the airflow mode main link grooves and install the airflow mode main link.

― Airflow mode link tab A and airflow mode main link groove A

― Airflow mode link tab B and airflow mode main link groove B

― Airflow mode link tab C and airflow mode main link groove C

a30zzw00006399

4. Move the airflow mode main link in the direction shown in the figure and verify that it rotates smoothly.

a30zzw00006400

Note

• The airflow mode main link is not secured, therefore hold it with your hand so that it does not detach.

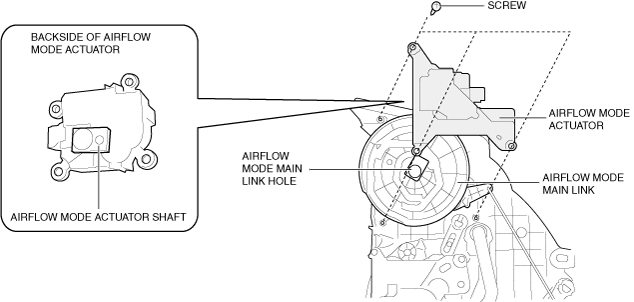

5. Align the airflow mode main link hole with the shape of the airflow mode actuator shaft, and install the airflow mode actuator.

a30zzw00006401

6. Install the screws.

7. Install the clip.

a30zzw00006402

8. Connect the connector.

9. Install the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
