PASSENGER AIR BAG DEACTIVATION (PAD) SYSTEM [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

id0810b1700400


Purpose

•  The PAD system switches the passenger's air bag and the pre-tensioner seat belt between operable (deployable) and inoperable (non-deployable).

Function

•  For the PAD system, the SAS control module switches the following air bag modules and the pre-tensioner seat belt between operable (deployable) and inoperable (non-deployable) based on the PAD switch status.

PAD switch status
•  Passenger-side air bag module
•  Side air bag module for front passenger
•  Passenger-side front pre-tensioner seat belt

PAD indicator

Passenger air bag indicator

PAD ON indicator

PAD OFF indicator
ON
Operable (deployable)
On
On
Off
OFF
Inoperable (non-deployable)
On
Off
On


Construction

•  The PAD system consists of the SAS control module, PAD switch and PAD indicator.
•  The PAD switch is located on the passenger-side lower panel.
•  The PAD indicator has an integrated indicator unit.

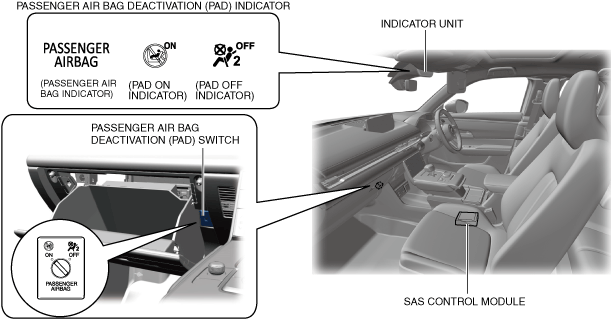

a30zzn00002051

Operation


PAD switch is ON

1.  When the ignition is switched ON, the SAS control module detects (1) a PAD switch status signal and sends a PAD indicator request signal to the indicator unit (2).

2.  When the ignition is switched ON, the indicator unit turns the transistor on (3).

3.  When the transistor turns on, the passenger air bag indicator turns on (4).

4.  The indicator unit turns the transistor on (5) based on the PAD indicator request signal.

5.  When the transistor turns on, the PAD ON indicator turns on (6).

6.  The SAS control module operates (deploys) (7) the passenger-side air bag module, side air bag module for front passenger, and passenger-side front pre-tensioner seat belt.

7.  When approx. 60 s have elapsed after the PAD ON indicator turns on, it turns off (8).

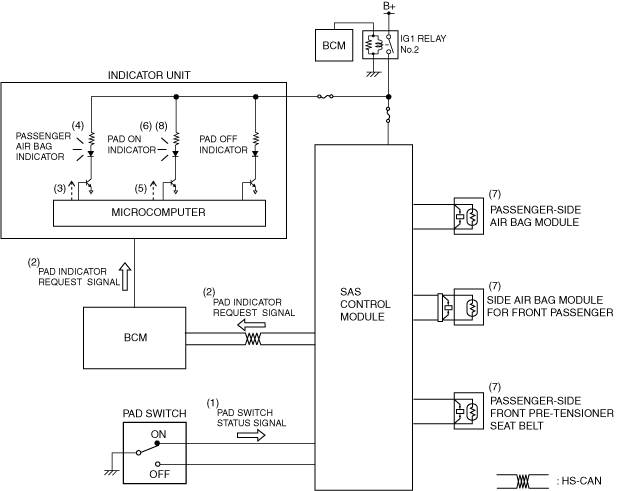

a30zzn00000256


PAD switch is OFF

1.  When the ignition is switched ON, the SAS control module detects (1) a PAD switch status signal and sends (2) a PAD indicator request signal to the indicator unit.

2.  When the ignition is switched ON, the indicator unit turns the transistor on (3).

3.  When the transistor turns on, the passenger air bag indicator turns on (4).

4.  The indicator unit turns the transistor on (5) based on the PAD indicator request signal.

5.  When the transistor turns on, the PAD OFF indicator turns on (6).

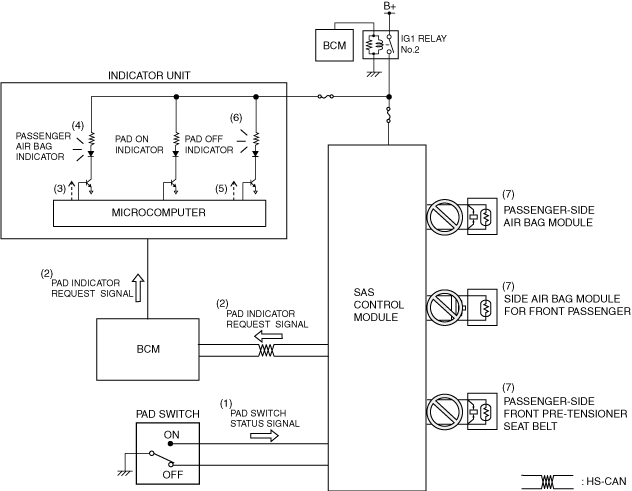

6.  The SAS control module inhibits operation (deployment) the passenger-side air bag module, side air bag module for front passenger, and passenger-side front pre-tensioner seat belt (7).

a30zzn00000257
