SIDE AIR BAG SENSOR [TWO-STEP DEPLOYMENT CONTROL SYSTEM]
id0810b1701200
Purpose
• The side air bag sensor detects an impact during a lateral collision.
Function
• The side air bag sensor converts the detected impact to an electrical signal.
Structure/Construction
• The G sensor is built into the side air bag sensor.

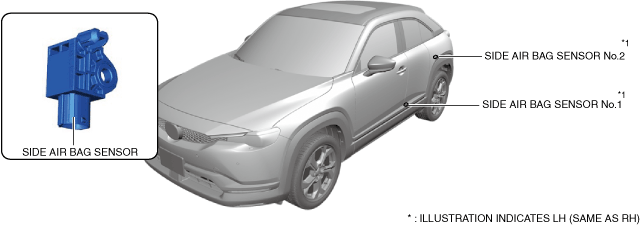

• The side air bag sensor No.1 is located inside the lower part of rear doors.
• The side air bag sensor No.2 is located in the rear pillar in the lower part of the pillar.
Operation
