FRONT FENDER STAY REMOVAL/INSTALLATION

id091000041900

Front Fender Stay (LH)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Front over fender (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

(2)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

(3)  Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

(4)  Front bumper slider (See BUMPER SLIDER REMOVAL/INSTALLATION.)

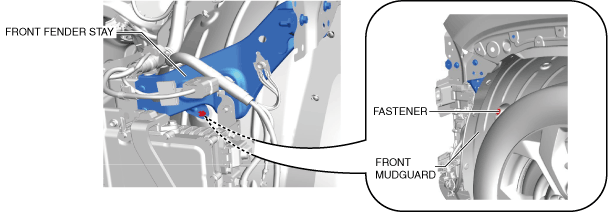

3.  Remove the fastener.

a30zzw00005495

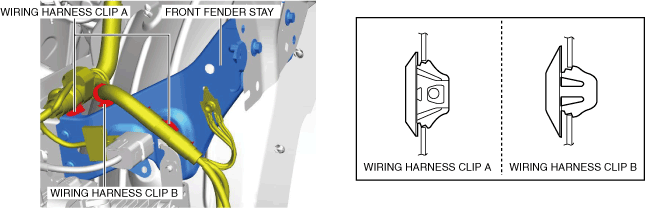

4.  Remove wiring harness clips A and B.

a30zzw00005496

5.  Remove the bolts and then remove the body ground.

a30zzw00005497

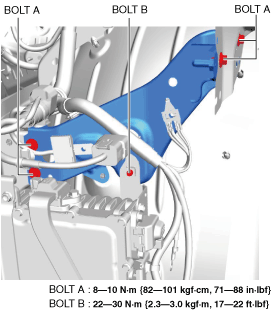

6.  Remove the bolts A.

a30zzw00005498

7.  Remove the bolt B.

8.  Remove the front fender stay.

9.  Install in the reverse order of removal.

10.  Perform the headlight aiming adjustment. (See HEADLIGHT AIMING.)

11.  Perform the 360° view monitor system aiming. (With 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

12.  Perform the front radar sensor/front side radar sensor aiming. (With front side radar sensor) (See FRONT RADAR SENSOR/FRONT SIDE RADAR SENSOR AIMING.)

13.  Perform the front radar sensor aiming. (Without front side radar sensor) (See FRONT RADAR SENSOR AIMING.)

Front Fender Stay (RH)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Front over fender (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

(2)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

(3)  Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

(4)  Front bumper slider (See BUMPER SLIDER REMOVAL/INSTALLATION.)

(5)  Washer tank (See WASHER TANK REMOVAL/INSTALLATION.)

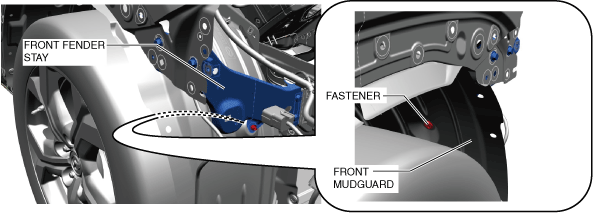

3.  Remove the fastener.

a30zzw00000893

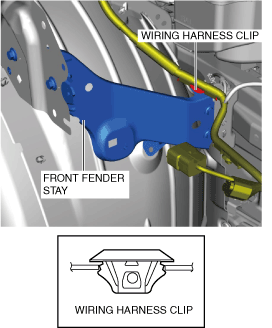

4.  Remove the fastener.

ac30zw00001112

5.  Remove the bolts.

ac30zw00001113

6.  Remove the front fender stay.

7.  Install in the reverse order of removal.

8.  Perform the headlight aiming adjustment. (See HEADLIGHT AIMING.)

9.  Perform the 360° view monitor system aiming. (With 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

10.  Perform the front radar sensor/front side radar sensor aiming. (With front side radar sensor) (See FRONT RADAR SENSOR/FRONT SIDE RADAR SENSOR AIMING.)

11.  Perform the front radar sensor aiming. (Without front side radar sensor) (See FRONT RADAR SENSOR AIMING.)
