REAR OVER FENDER REMOVAL/INSTALLATION

id091000042300

1.  Remove the fasteners

a30zzw00005499

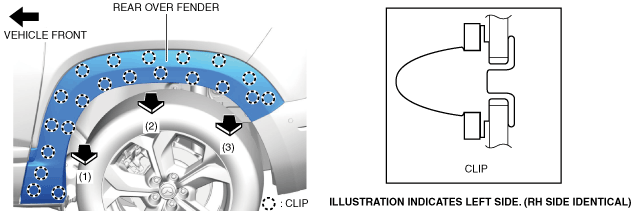

2.  Pull the rear over fender in the order of arrows (1), (2), and (3) shown in the figure, and remove it while detaching the clips.

a30zzw00005500

3.  Remove the clips remaining on the vehicle body and install them to the rear over fender.

4.  Install in the reverse order of removal.

Warning

•  If the rear over fender is installed with damaged clips, it may fall off during driving, leading to a serious accident. When installing the rear over fender, check that the clips are not damaged, and if they are, replace them with new clips.
