FUEL-FILLER LID REMOVAL/INSTALLATION

id091000042800

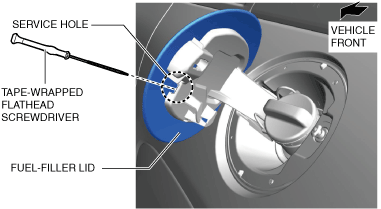

1.  Insert a tape-wrapped flathead screwdriver into the service hole.

a30zzw00005462

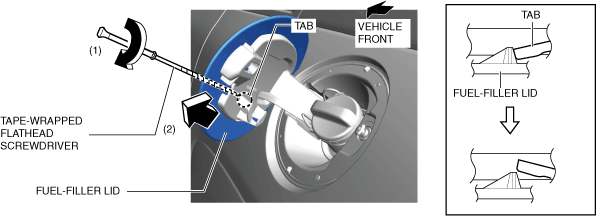

2.  Move the tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the figure and detach the tab.

a30zzw00005463

3.  Move the fuel-filler lid in the direction of arrow (2) shown in the figure with the tab left detached, and remove the fuel-filler lid.

4.  Install in the reverse order of removal.
