FRONT DOOR REMOVAL/INSTALLATION

id091100042900

Warning

•  Removing the front door without supporting it could cause the front door to fall and cause serious injury. Always perform the procedure with at least one other person to prevent the front door from falling.

Caution

•  When the front door checker installation bolts are removed, the front door may open until it contacts the front fender panel causing the front door and the front fender panel to be damaged. Before removing the front door, overlap and apply the protective tape to the position shown in the figure and be careful not to damage the front door and the front fender panel.

am3zzw00029688

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

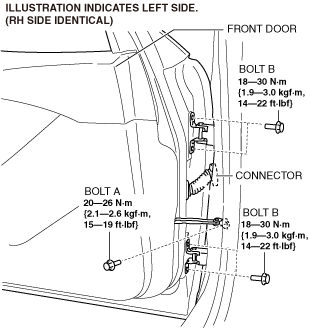

2.  Remove bolt A.

am3zzw00029689

3.  Remove bolts B.

4.  Disconnect the connector. (See Connector Removal Note.)

Note

•  If it is difficult to remove the connector from the body, disconnect the connector while another person supports the door.

5.  Remove the front door.

6.  Install in the reverse order of removal.

7.  Perform the front door adjustment. (See DOOR ADJUSTMENT.)

8.  Perform the 360° view monitor system aiming. (With 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

Connector Removal Note

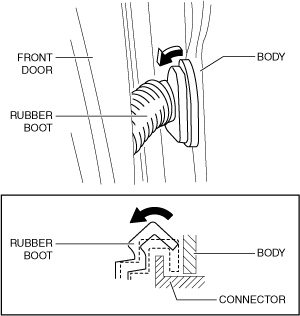

1.  Partially peel back the rubber boot in the direction of the arrow shown in the figure and remove it from the connector.

am3zzw00029690

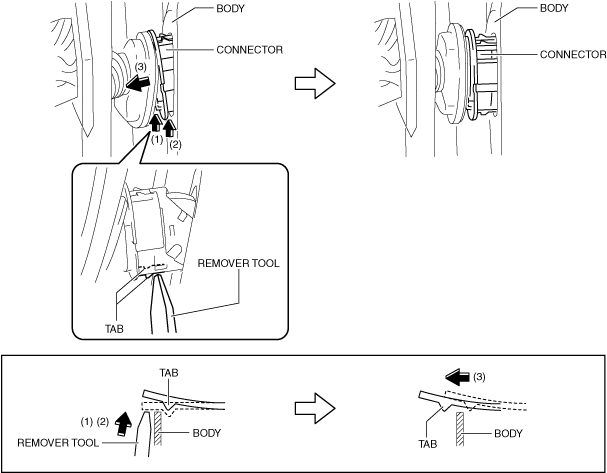

2.  While pushing the tabs in the direction of arrows (1) and (2) shown in the figure using the remover tool, move the connector in the direction of arrow (3) and remove it from the body.

am3zzw00029691

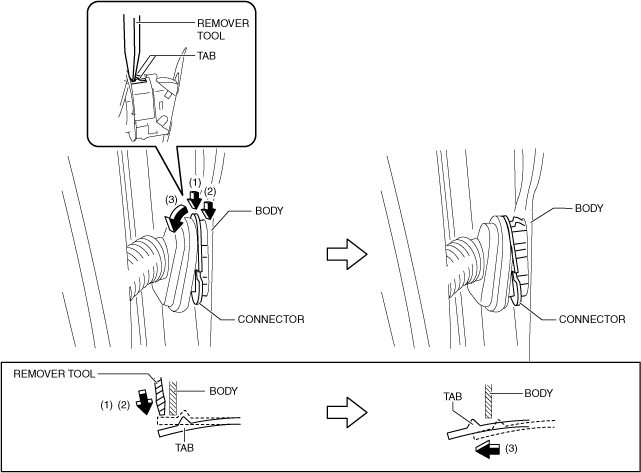

3.  While releasing the tabs in the direction of arrows (1) and (2) shown in the figure using the remover tool, move the upper part of the connector in the direction of arrow (3) and remove it from the body.

am3zzw00029692

4.  Lower the lever in the direction of the arrow shown in the figure while pushing the tab to release the lock and disconnect the connector.

am3zzw00029693
