DOORS


id091100700000


Outline

•  Center-open type free-style doors have been adopted where the rear doors open towards the rear of the vehicle from the center.
a30zzn00001525

Construction/Operation

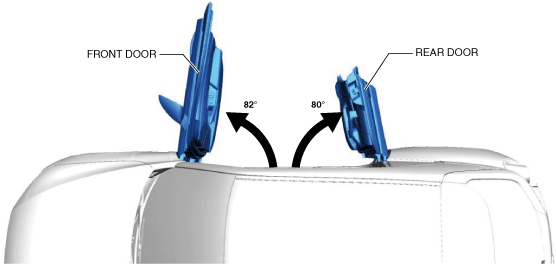

•  The front doors can open up to 82° and the rear doors up to 80°, ensuring good access.
a30zzn00001526

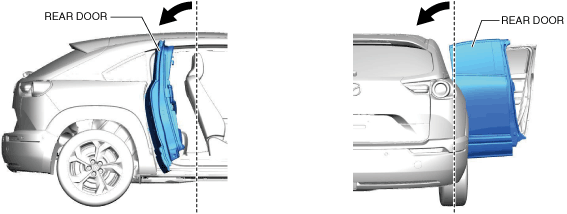

•  The rear doors have been slanted towards the inner side and rear of the vehicle so they open at a slightly upward angle. This prevents the doors from interfering with each other when opening or closing and reduces the amount of force required for opening.
a30zzn00001527

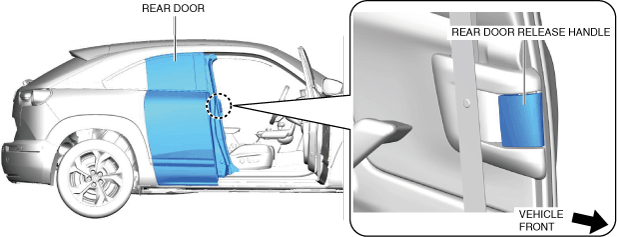

•  A large-sized release handle located inside rear door jamb is used to open the rear door. Due to this, a mechanism that keeps the rear door from opening if the front is not opened first has been adopted, and accidental opening is prevented.
a30zzn00001528
