POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION

id091200701500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  To prevent scratches or damage, apply protective tape to the positions shown in the figure.

a30zzw00005514

3.  Using a remover tool, detach tab A from the front door trim.

a30zzw00005515

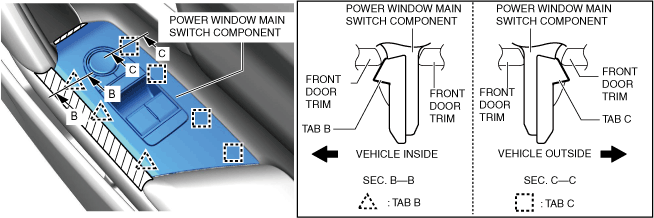

4.  Using a remover tool, detach tab B from the front door trim.

a30zzw00005516

5.  Using a remover tool, detach tab C from the front door trim.

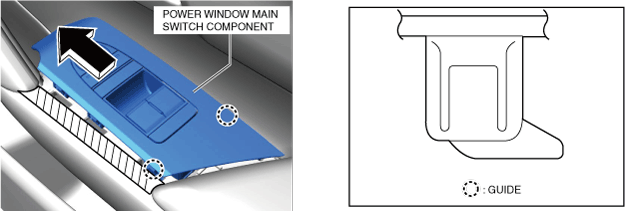

6.  Move the power window main switch component in the direction of the arrow shown in the figure and remove the guides.

a30zzw00005517

7.  Remove the power window main switch component from the front door trim.

8.  Disconnect the connector.

a30zzw00005518

9.  Remove the screws.

a30zzw00005519

10.  Remove the power window main switch from the power window main switch cover.

11.  Install in the reverse order of removal.
