FRONT POWER WINDOW MOTOR INSPECTION

id091200702800

LH

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)

3.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

4.  Apply battery positive voltage and connect the ground to power window motor terminals A and F, and then inspect the power window motor operation.

B+ Terminal	Ground Terminal	Operation
A	F	Close
F	A	Open

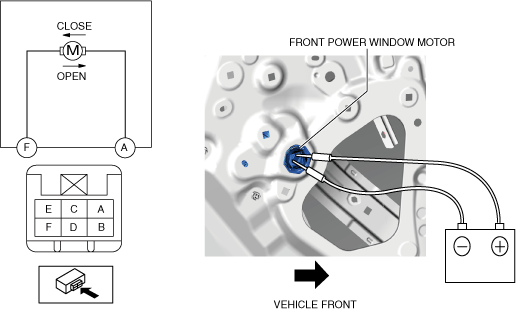

ac30zw00002188

•   If the power window motor does not operate as indicated in the table, replace it. (See FRONT POWER WINDOW MOTOR REMOVAL/INSTALLATION.)

RH

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)

3.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

4.  Apply battery positive voltage and connect the ground to power window motor terminals B and E, and then inspect the power window motor operation.

B+ Terminal	Ground Terminal	Operation
B	E	Close
E	B	Open

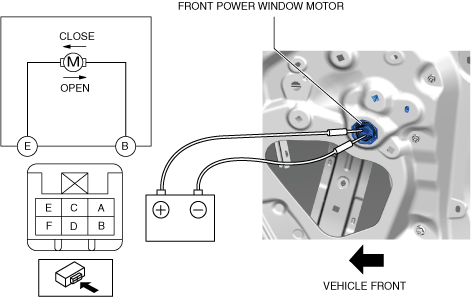

a30zzw00006455

•   If the power window motor does not operate as indicated in the table, replace it. (See FRONT POWER WINDOW MOTOR REMOVAL/INSTALLATION.)
