POWER WINDOW MAIN SWITCH
id091200703900
Purpose
• Transmits the power window main switch operation of the driver to the door-electrical supply unit.
Function
• Manual
-
― When the power window main switch is operated for manual open/close operation, it sends a manual open/close signal to the door-electrical supply unit.
• Auto
-
― When the power window main switch is operated for auto open/close operation, it sends an auto open/close signal to the door-electrical supply unit.
• Power-cut
-
― When the power-cut switch is pressed (contact point: Open), operation of the power window subswitches for the front passenger seats is disabled.
Structure/Construction
• The power window main switch consists of the following parts:
-
― Driver's side switch
― Passenger's side switch
― Power-cut switch
Operation

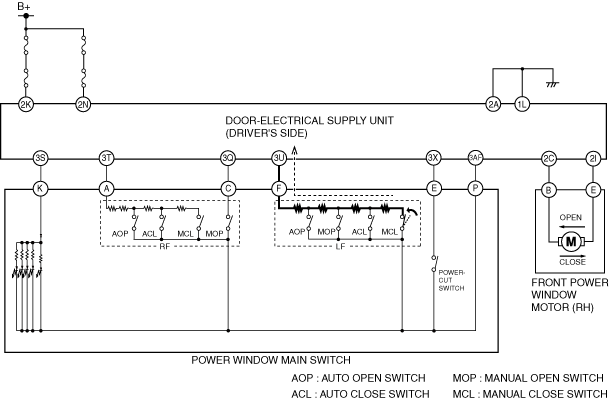

Power window main switch (Example: manual close operation)
-
1. Contact points for door glass opening/closing can be changed by operating the power window main switch.
Power-cut switch
-
• When the power-cut switch of the power window main switch is on (contact point: Open), current from each power window subswitch is interrupted.
