POWER OUTER MIRROR SYSTEM

id091200704100

Outline

Function (Outer Mirror Glass)

Adjustment function

•  The mirror surface position are adjusted by operating the up/down, left/right adjustment switch.

Reverse interlock tilt down function

•  With the power outer mirrors, when the selector lever is shifted to the R position, the outer mirror glass tilts downward.

Reverse interlock return function

•  When any of the following operations is performed, the outer mirror glass which was tilted downward by the reverse interlock tilt down, is returned to its original position.

―  Selector lever is shifted to position other than R

―  Ignition is switched OFF or to ACC

―  Left/right selection switch is operated

Position memory system interlock function

•  Programs/positions the mirror surface positions in conjunction with the driver’s front seat position programming/positioning. For details, refer to [POSITION MEMORY SYSTEM]. (See POSITION MEMORY SYSTEM.)

IG OFF timer function

•  The mirror surface position can be adjusted for approx. 40 s after the ignition is switched OFF.

Function (Power Outer Mirror)

Retract/return function

•  The power outer mirrors are retracted/returned by operating the retract/return switch.

Automatic retract function

•  When the driver's door is locked, the power outer mirrors retract automatically.

Automatic return function

•  The power outer mirrors return automatically when the driver's door is unlocked or the ignition is switched ON (engine off or on).

IG OFF timer function

•  The power outer mirrors can be retracted/returned for approx. 40 s after the ignition is switched OFF.

Personalization feature

•  The automatic retract and automatic return function on/off setting can be changed. For details on personalization features, refer to [PERSONALIZATION FEATURES] in the workshop manual.

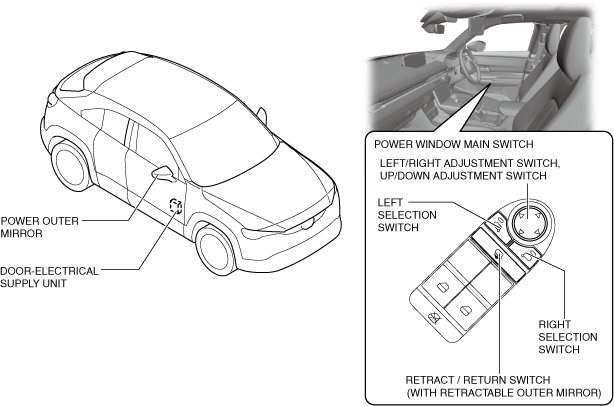

Structural View

a30zzn00002075

System Wiring Diagram

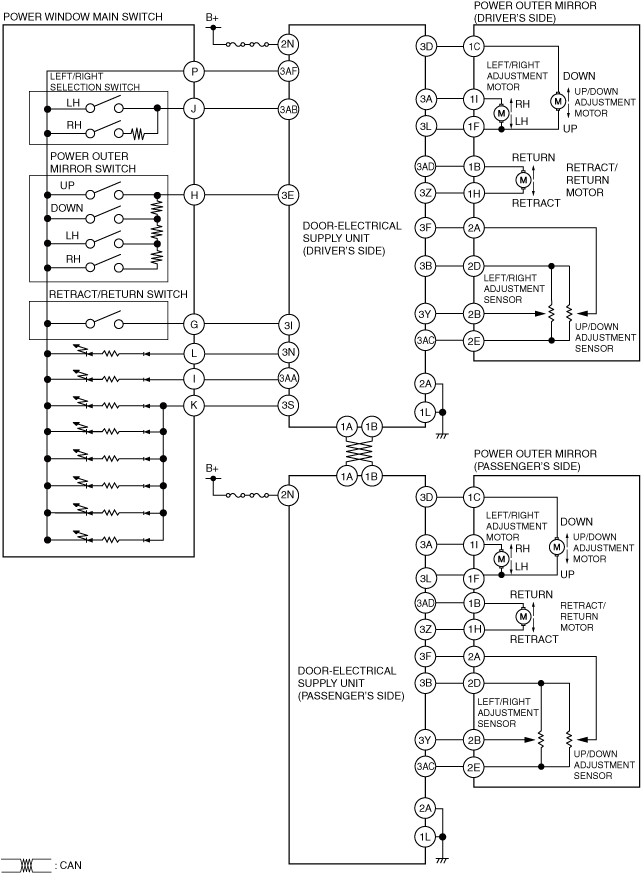

ac30zn00001518

Operation (Outer Mirror Glass)

Outer mirror glass adjustment operation (Ex.: Right outer mirror glass is tilted upward)

•  When any of the following conditions is met, the outer mirror glass tilts upward when the up/down, left/right adjustment switch is operated in the upward direction.

Operation conditions

―  Ignition is switched to ACC or ON (engine off or on)

―  IG OFF timer is operating

1.  When the door-electrical supply unit (driver’s side) detects that the up/down, left/right adjustment switch is on (1) in the upward direction, it operates (2) the power outer mirror up/down adjustment motor in the upward direction.

2.  The outer mirror glass tilts upward according to the operation of the power outer mirror up/down adjustment motor.

3.  When the outer mirror glass tilts upward, the resistance inside the up/down adjustment sensor decreases and the voltage input to the door-electrical supply unit increases.

4.  The door-electrical supply unit recognizes that the outer mirror glass is tilted upward and the position by the change in the voltage.

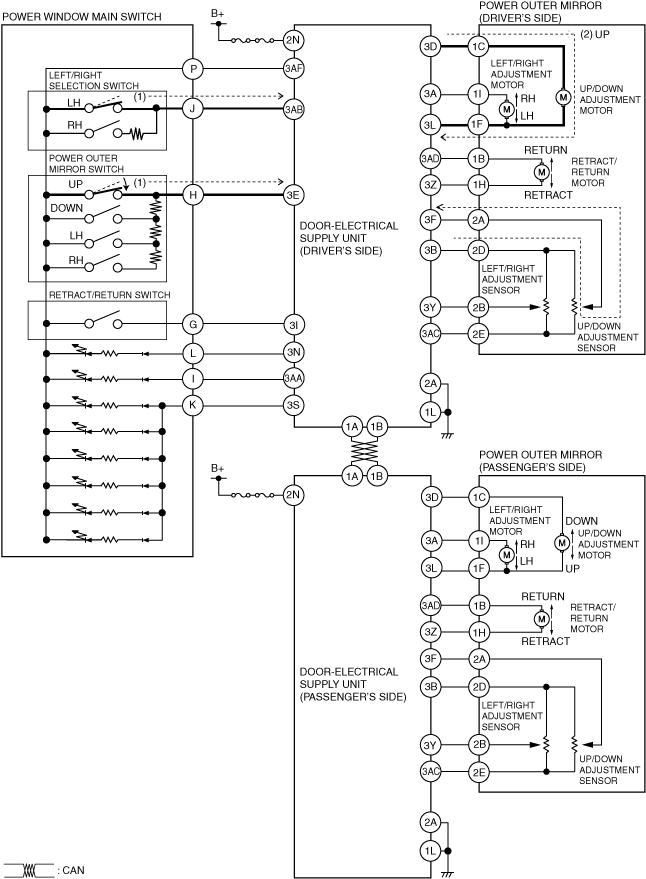

ac30zn00001519

Reverse interlock tilt down operation (Ex.: Right power outer mirror is selected)

•  When all of the following conditions are met, the outer mirror glass tilts downward when the left/right selection switch is operated to the right and the selector lever is shifted to the R position.

Operation conditions

―  Ignition is switched ON (engine off or on)

―  Selector lever is not shifted to R position

―  Outer mirror glass is not operating or reverse interlock return is operating

―  Position memory system is not operating (programming, positioning, or clearing)

1.  When the door-electrical supply unit (driver’s side) detects (1) an R position signal, the power outer mirror up/down adjustment motor operates (2) downward.

2.  The outer mirror glass tilts downward according to the operation of the power outer mirror up/down adjustment motor.

3.  When the outer mirror glass tilts downward, the resistance inside the up/down adjustment sensor increases and the voltage input to the door-electrical supply unit decreases.

4.  The door-electrical supply unit recognizes that the outer mirror glass is tilted downward and the position by the change in the voltage.

5.  When the door-electrical supply unit recognizes that the outer mirror glass tilted to the target position, it stops the operation of the up/down adjustment motor.

ac30zn00001520

Reverse interlock return operation (Ex.: Right power outer mirror is selected, selector lever is in position other than R)

•  When all of the following conditions are met, the outer mirror glass returns to the position before the reverse interlock tilt down was operated when any of the start conditions is met.

Operation conditions

―  Ignition is switched ON (engine off or on)

―  Selector lever is in R position

―  Reverse interlock tilt down is operating or finished

―  Right power outer mirror is selected using left/right selection switch

Operation conditions

―  Selector lever is shifted to position other than R

―  Ignition is switched OFF or to ACC

―  Left/right selection switch is operated

1.  When the door-electrical supply unit (driver’s side) detects (1) a signal other than the R position signal, the power outer mirror up/down adjustment motor operates (2) upward.

2.  The outer mirror glass tilts upward according to the operation of the power outer mirror up/down adjustment motor.

3.  When the outer mirror glass tilts upward, the resistance inside the up/down adjustment sensor decreases and the voltage input to the door-electrical supply unit increases.

4.  The door-electrical supply unit recognizes that the outer mirror glass is tilted upward and the position by the change in the voltage.

5.  When the door-electrical supply unit recognizes that the outer mirror glass returned to the condition before the reverse interlock tilt down was operated, it stops the operation of the up/down adjustment motor.

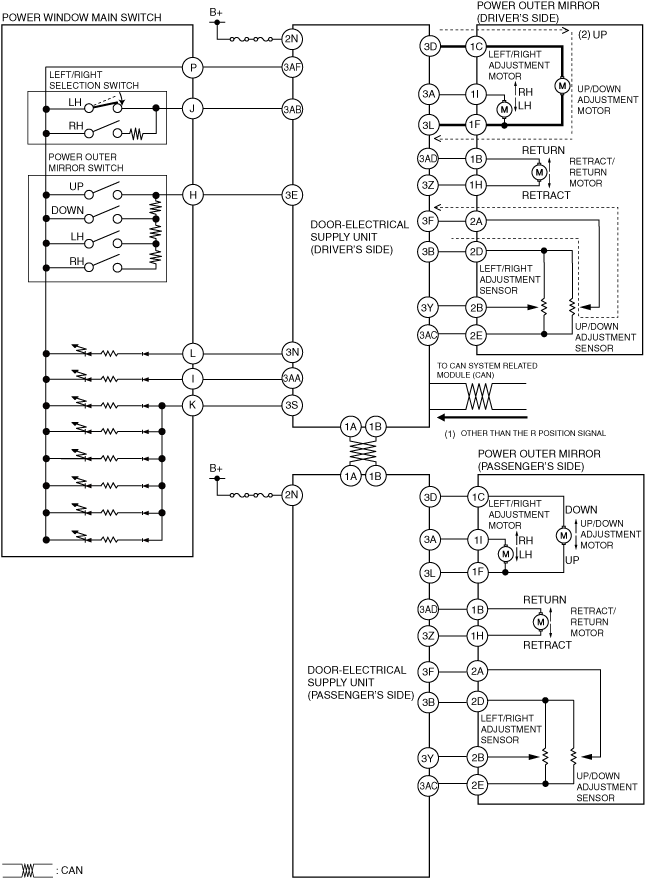

ac30zn00001521

IG OFF timer operation

•  When the ignition is switched OFF, the IG OFF timer function in the door-electrical supply unit is turned on and the up/down, left/right adjustment switch can be operated for approx. 40 s after IG OFF is detected.

Operation (Power Outer Mirror)

Power outer mirror retract/return operation (Ex.: Power outer mirrors are retracted)

•  When any of the following conditions is met, the power outer mirrors retract when the retract/return switch (retract) is turned on.

Operation conditions

―  Ignition is switched to ACC or ON (engine off or on)

―  IG OFF timer is operating

1.  When the retract/return switch (retract) is turned on (1), the door-electrical supply unit detects a retract signal.

2.  When the door-electrical supply unit detects the retract signal, the retract/return motor operates (2) in the retract direction and the power outer mirrors retract.

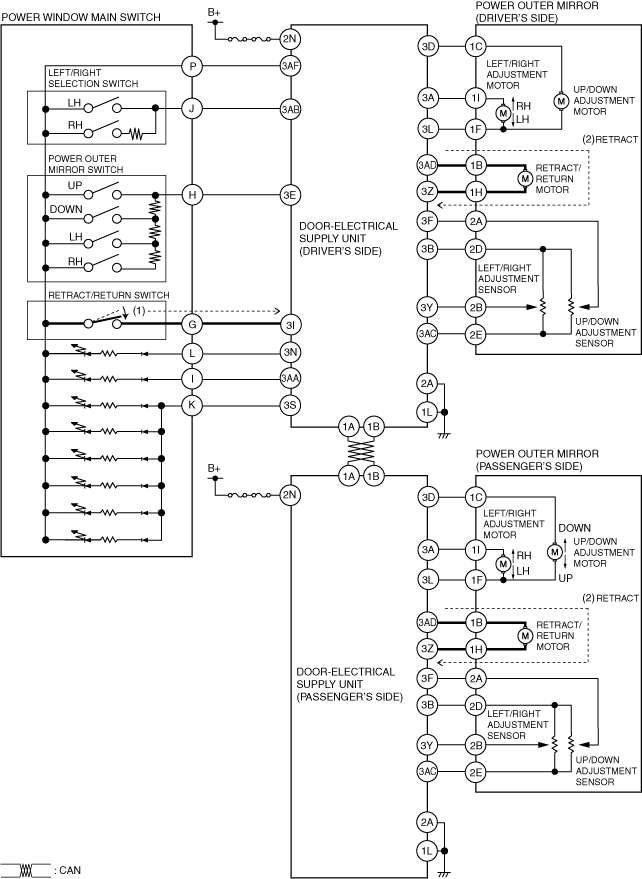

ac30zn00001522

Power outer mirror automatic retract operation

•  When all of the following conditions are met, the power outer mirrors retract automatically when the driver's door is locked.

Operation conditions

―  Personalization feature setting for automatic retract/return function is [ON]

―  Ignition is switched OFF

1.  When the door-electrical supply unit (driver’s side) detects (1) a lock signal, the retract/return motor operates (2) in the retract direction and the power outer mirrors retract.

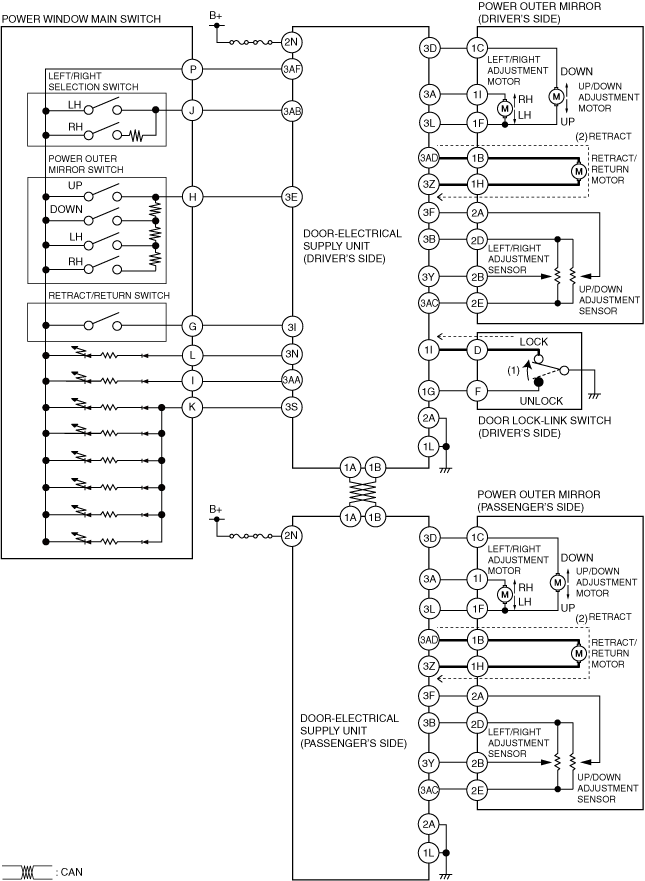

ac30zn00001536

Power outer mirror automatic return operation (Ex.: Driver’s door is unlocked)

•  When all of the following conditions are met, the power outer mirrors return automatically when the driver's door is unlocked.

Operation conditions

―  Personalization feature setting for automatic retract/return function is [ON]

―  Ignition is switched OFF

Note

•  When the automatic retract/return personalization feature setting is [ON], the power outer mirrors return automatically when the ignition is switched ON (engine off or on).

1.  When the door-electrical supply unit (driver’s side) detects (1) an unlock signal, the retract/return motor operates (2) in the return direction and the power outer mirrors return.

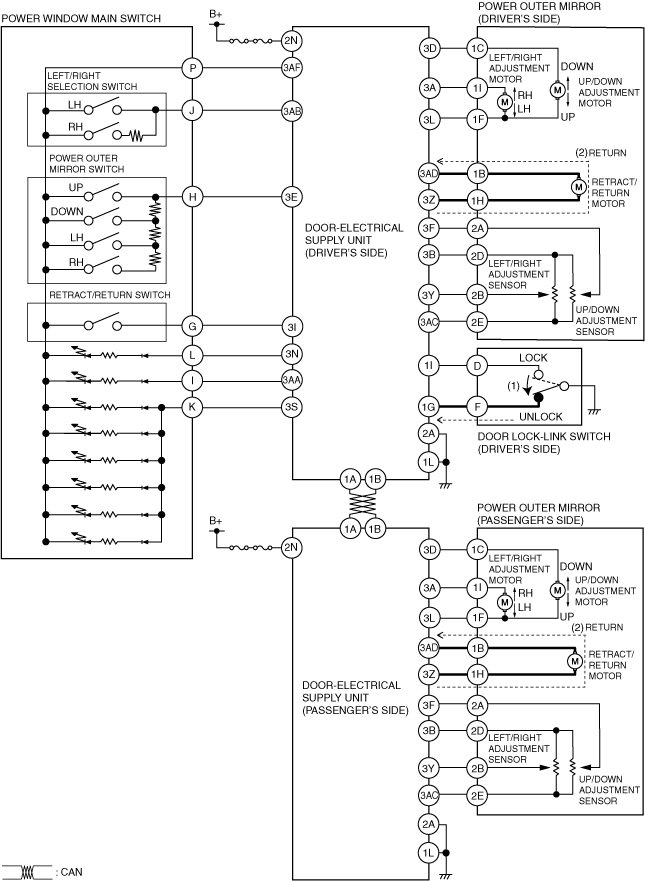

ac30zn00001524

IG OFF timer operation

•  When the ignition is switched OFF, the IG OFF timer function in the door-electrical supply unit is turned on and the retract/return switch can be operated for approx. 40 s after IG OFF is detected.
