POWER OUTER MIRROR SWITCH
id091200704300
Purpose
• The switch turns on/off in conjunction with the driver's switch operation and switches the power outer mirror angle adjustment circuit contact point.
• The switch turns on/off in conjunction with the driver's switch operation and switches the power outer mirror angle adjustment circuit and retract/return circuit contact points. (With retractable outer mirror)
Function
Up-down/left-right adjustment function
-
• The power outer mirror switch switches the contact point according to the switch operation. As a result, the circuit to the up-down/left-right adjustment motor is switched.
Left/right selection function
-
• The left/right selection switch is used to select the side on which adjustment of the power outer mirror glass is desired.
Retract/return switch (With retractable outer mirror)
-
• The retract/return switch changes the contact point according to the switch operation. As a result, the circuit to the retract/return motor is changed.
Structure/construction

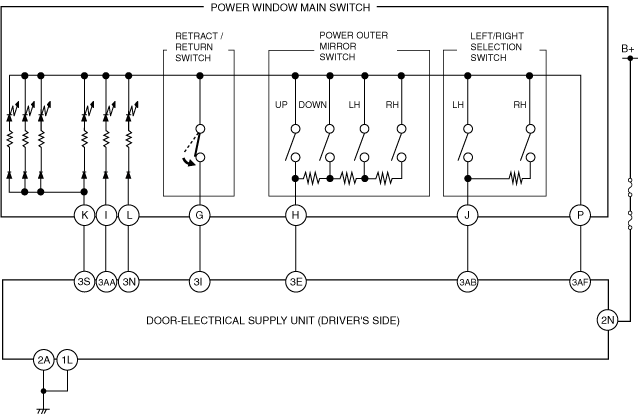

• The power outer mirror switch consists of the following parts.
-
― Up-down/left-right adjustment switch
― Left/right selection switch
― Retract/return switch (With retractable outer mirror)
Operation
Ex: Switch is pressed in the upward direction
-
• By operating the power outer mirror switch, up-down/left-right contact points for the power outer mirror can be switched.
Ex: Switched from return to retract (With retractable outer mirror)
-
• By operating the power outer mirror switch, retract/return contact points for the power outer mirror can be switched.
-
1. The contact points for the power outer mirror retract/return can be changed by operating the retract/return switch.
