REAR SEAT HINGE REMOVAL/INSTALLATION

id091300301900


Rear Seat Hinge (RH)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)
(3)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
(4)  Rear pillar trim (See REAR PILLAR TRIM REMOVAL/INSTALLATION.)
(5)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(6)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)
(7)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

3.  Remove the bolt.

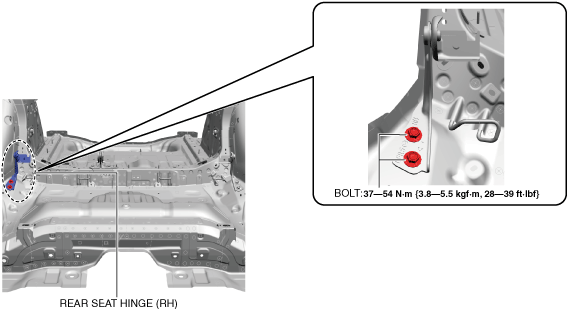

a30zzw00004964

4.  Remove the rear seat hinge (RH).

5.  Install in the reverse order of removal.


Rear Seat Hinge (LH)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)
(3)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
(4)  Rear pillar trim (See REAR PILLAR TRIM REMOVAL/INSTALLATION.)
(5)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(6)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)
(7)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
(8)  Rear buckle (LH) (See REAR BUCKLE REMOVAL/INSTALLATION.)
(9)  Rear center seat belt anchor (See REAR SEAT BELT REMOVAL/INSTALLATION.)

3.  Remove the bolt.

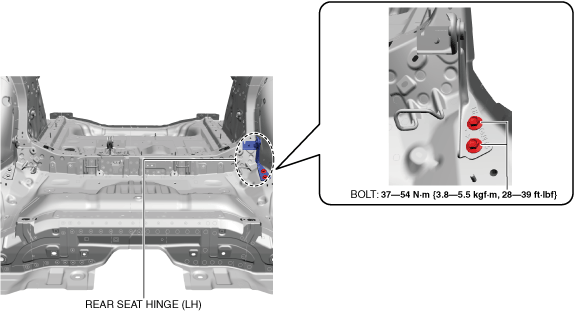

a30zzw00004965

4.  Remove the rear seat hinge (LH).

5.  Install in the reverse order of removal.


Rear Seat Hinge (CENTER)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(2)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)
(3)  Rear buckle (LH) (See REAR BUCKLE REMOVAL/INSTALLATION.)
(4)  Rear center seat belt anchor (See REAR SEAT BELT REMOVAL/INSTALLATION.)

3.  Remove the bolt.

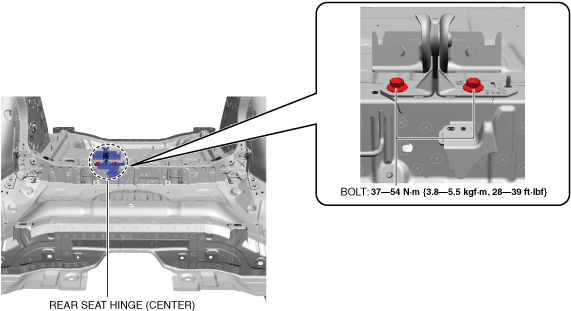

a30zzw00004966

4.  Remove the rear seat hinge (CENTER).

5.  Install in the reverse order of removal.
