KEYLESS RECEIVER REMOVAL/INSTALLATION

id091400202400

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(2)  Trunk side upper trim (LH) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(3)  Rear pillar trim (LH) (See REAR PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

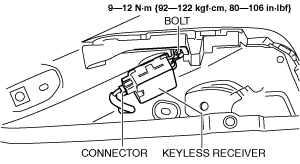

a30zzw00002514

4.  Remove the bolt.

5.  Remove the keyless receiver.

6.  Install in the reverse order of removal.
