FUEL-FILLER LID LOCK ACTUATOR

id091400203800

Purpose

• Performs lock/unlock switching of the fuel-filler lid electrically based on the signal from the electrical supply unit (ESU).

Functions

Lock function

• The fuel-filler lid lock actuator operates the built-in motor in the lock direction to lock the fuel-filler lid.

Unlock function

• The fuel-filler lid lock actuator operates the built-in motor in the unlock direction to unlock the fuel-filler lid.

Fuel-filler lid lock actuator manual release procedure function

• The fuel-filler lid can be unlocked manually. Refer to the [FUEL-FILLER LID LOCK ACTUATOR MANUAL RELEASE PROCEDURE] in the workshop manual for details.

Construction

• The fuel-filler lid lock actuator has a built-in motor, and the link installed to the motor moves in the lock/unlock direction in conjunction with the motor rotation.

• The rib is moved by moving the link installed to the motor.

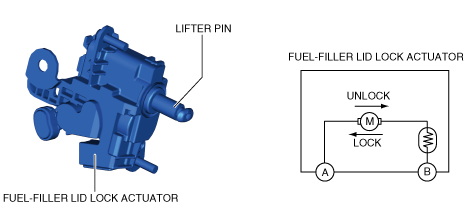

ac30zn00001167

Operation

Lock operation

1. The motor in the fuel-filler lid lock actuator rotates in the lock direction in conjunction with the door lock.

2. The helical gear in the fuel-filler lid lock actuator rotates to the lock side.

3. The rod locks the lifter pin.

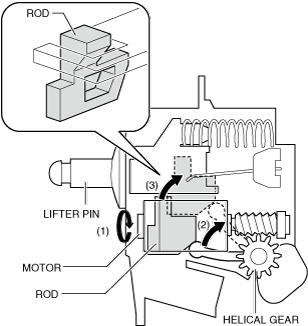

a30zzn00001066

Unlock operation

1. The motor in the fuel-filler lid lock actuator rotates in the unlock direction in conjunction with the door unlock.

2. The helical gear in the fuel-filler lid lock actuator rotates to the unlock side.

3. The rod unlocks the lifter pin.

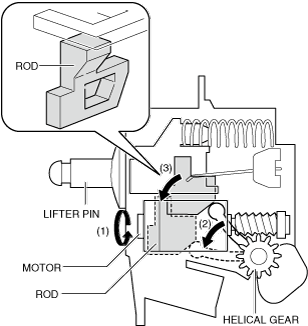

a30zzn00001067
